Product Detailed Parameters
- Description：CONN HEADER SMD 34POS 1.25MM
- Series：Gecko SL
- Mfr：Harwin Inc.
- Package：Strip
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.049" (1.25mm)
- Number of Positions：34
- Number of Rows：2
- Row Spacing - Mating：0.049" (1.25mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Screw Lock
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.193" (4.90mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：8.00µin (0.203µm)
- Contact Finish - Post：Gold
- Contact Material：Phosphor Bronze
- Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
- Features：Mating Flange, Mounting Flange, Pick and Place
- Operating Temperature：-65°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Green
- Current Rating (Amps)：2A
- Voltage Rating：450V
Download product information
Overview

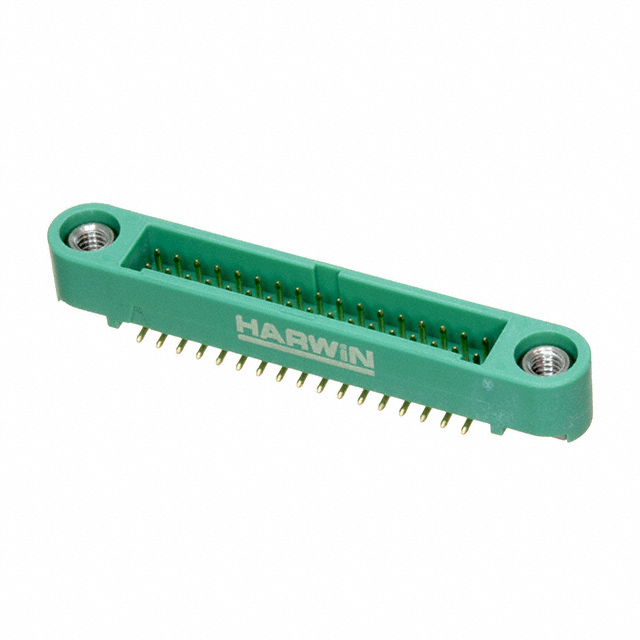

The Harwin G125-MS13405M1P is a Gecko-SL series power-to-board connector header designed for surface mount installation. It features a male pin configuration with a 1.25 mm pitch and accommodates 34 positions arranged in two rows. The component utilizes gold-plated beryllium copper contacts housed in a green nylon shell, supporting a current rating of 2 A and operating temperatures from -65 °C to +150 °C. This specific part number includes reverse fix tape packaging for automated assembly processes.
Feature Summary
- Reverse fix tape packaging facilitates reliable automated pick-and-place operations during surface mount assembly.
- Gecko-SL series design provides secure mechanical retention and robust electrical connections for power distribution applications.
Applications
- High-density power distribution on main system boards
- Automotive electronic control unit interconnects
- Industrial equipment power supply interfaces
Procurement Notes
Verify the exact suffix against official Harwin documentation to confirm the reverse fix tape specification and contact material. Ensure compatibility with standard surface mount reflow profiles and check for RoHS compliance status prior to final procurement approval.
Selection Notes
Select this component when a 1.25 mm pitch surface mount header with 34 positions is required. Consider the 2 A current rating and high temperature tolerance for demanding environments. Verify that the reverse fix tape packaging aligns with available assembly line automation capabilities.
Part Context
This connector belongs to the Harwin Gecko-SL family, engineered for compact power delivery solutions. The series emphasizes space efficiency and reliability in dense PCB layouts. The G125-MS13405M1P variant specifically addresses needs for vertical surface mount integration with specialized tape handling.
Replacement Considerations
Direct substitutes within the same series include G125-MV13405M1P (through-hole) and G125-MS13405L1P (latch mechanism). Verify mechanical fit and electrical ratings before swapping between through-hole, surface mount, or latch variants.
