Product Detailed Parameters
- Description：CONN HEADER SMD 34POS 1.25MM
- Series：Gecko SL
- Mfr：Harwin Inc.
- Package：Tape & Reel (TR)
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.049" (1.25mm)
- Number of Positions：34
- Number of Rows：2
- Row Spacing - Mating：0.049" (1.25mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.193" (4.90mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：8.00µin (0.203µm)
- Contact Finish - Post：Gold
- Contact Material：Phosphor Bronze
- Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
- Features：Mating Flange, Pick and Place, Polarizing Key
- Operating Temperature：-65°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Green
- Current Rating (Amps)：2A
- Voltage Rating：450V
Download product information
Overview

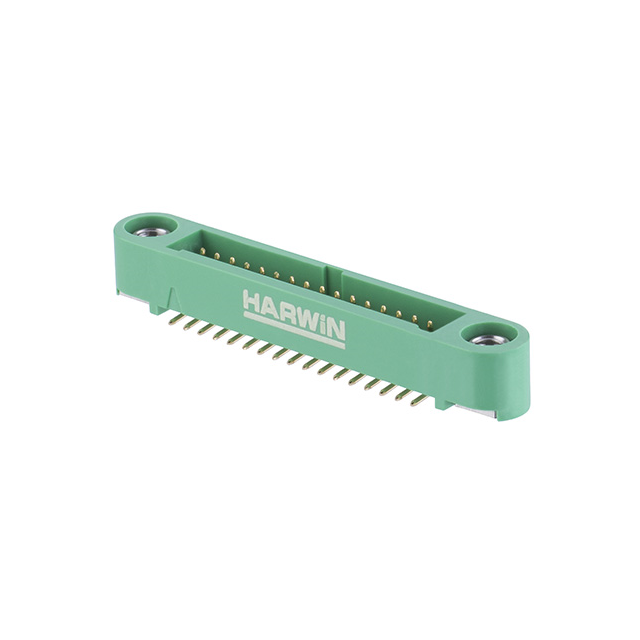

The Harwin G125-MS13405M1R is a Gecko-SL series male plug connector designed for surface mount technology. It features a double-row configuration with 34 positions (17+17) and a 1.25 mm pitch. The contacts are gold-plated phosphor bronze, rated for 2 A current. The housing is green polyamide (PA), UL 94 V-0 rated. Operating temperature range is -65°C to +150°C. It includes Screw-Lok fixings for secure board attachment.
Feature Summary
- Double-row straight surface mount design
- Screw-Lok internal threaded fixings
- Gold-plated phosphor bronze contacts
Applications
- Power to the Board connections
- High-density PCB interconnects
- Industrial control systems
Procurement Notes
Verify the specific suffix M1R against official Harwin documentation to confirm it denotes the correct reel packaging and variant. Ensure compatibility with automated SMT placement equipment. Confirm RoHS compliance status via the latest datasheet before procurement.
Selection Notes
Select this component when a vertical surface mount header with 34 positions is required. The 1.25 mm pitch allows for high density. The Screw-Lok feature provides mechanical stability superior to standard latches in vibration environments. Verify PCB thickness requirements for mounting.
Part Context
Part of the Harwin Gecko-SL family, known for reliability in extreme conditions (-65°C/+150°C). The series offers various mounting styles including through-hole and surface mount options with different locking mechanisms like Jackscrew or Latch.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided data. Cross-reference with other 1.25mm pitch SMT headers only if form-fit-function matches are verified by engineering.
FAQ
What type of fixing mechanism does this connector use?
It is fitted with internally threaded Screw-Lok fixings for secure board mounting.
Is this connector suitable for high-temperature applications?
Yes, it operates within a wide temperature range from -65°C to +150°C.
