G125-MS13405M3P

Overview

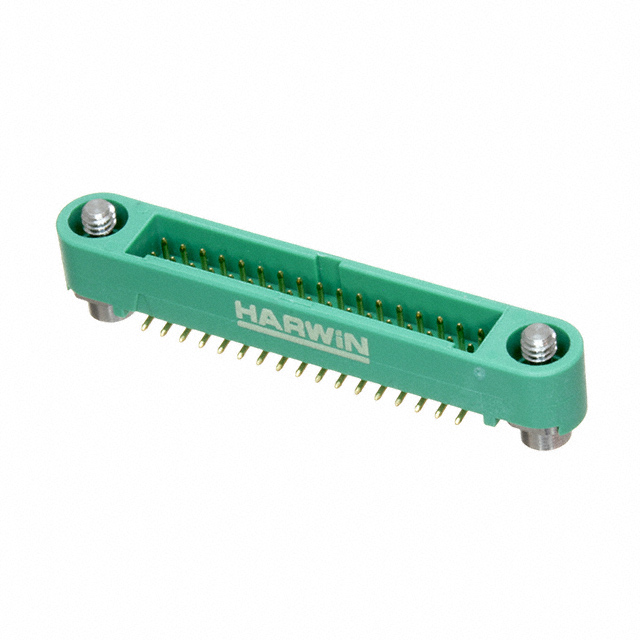

The Harwin G125-MS13405M3P is a Gecko-SL series power-to-board connector featuring a 1.25 mm pitch and 34 positions in a dual-row configuration. It utilizes male pin contacts with gold plating on beryllium copper, rated for 2 A current and 450 V voltage. Designed for vertical surface-mount installation, the housing is green polyamide (PA) with UL94 V-0 flammability rating. The unit operates within a temperature range of -65°C to +150°C and weighs approximately 1.41 g.

Feature Summary

• Vertical surface-mount design for compact PCB integration
• Gold-plated beryllium copper contacts for reliable conductivity
• High-temperature resistant polyamide insulation material

Applications

• Industrial control systems requiring robust power distribution
• Automotive electronics modules
• Telecommunications infrastructure equipment

Procurement Notes

Verify that the specific part number matches the required Gecko-SL series specifications. Confirm the vertical orientation and surface-mount termination style align with the target PCB layout. Ensure compatibility with mating female sockets from the same manufacturer series. Check for any specific tape-and-reel packaging requirements during ordering.

Selection Notes

Select this component when a high-density, vertical power connection is needed. The 1.25 mm pitch allows for significant contact density in limited space. The 2 A rating per contact supports moderate power loads. Consider the operating temperature range if the environment exceeds standard commercial limits.

Part Context

This connector belongs to Harwin's Gecko-SL family, designed for efficient power delivery directly onto circuit boards. The series emphasizes reliability and space-saving form factors for modern electronic assemblies.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
