G125-MS15005L3P

Overview

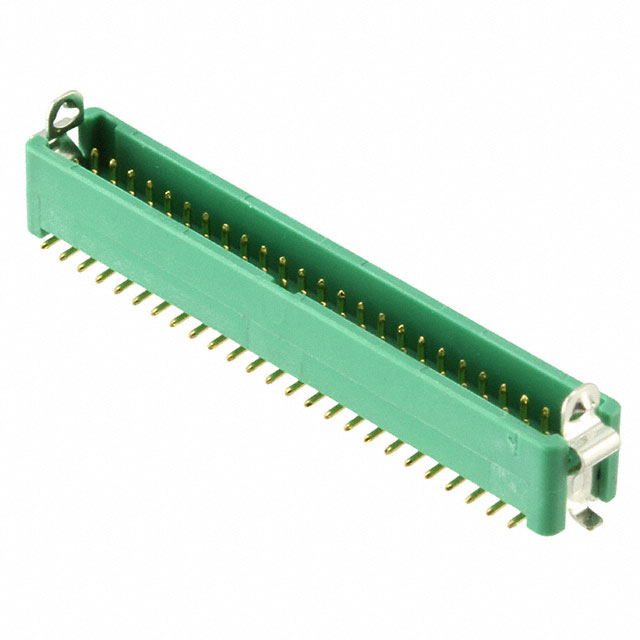

The Harwin G125-MS15005L3P is a Gecko-Latch power-to-board connector featuring a 1.25 mm pitch and 50 positions in a dual-row configuration. Designed for surface mount technology, it utilizes male pin contacts made of phosphor bronze with gold plating. The component supports a current rating of 2 A and voltage ratings of 250 V or 450 V. It operates within a temperature range of -65 C to +150 C and offers an insulation resistance of 10 GOhms.

Feature Summary

• Integrates a mechanical latching mechanism to ensure secure board-to-board connections.
• Features a low-profile design optimized for space-constrained stacking applications.
• Utilizes gold-plated phosphor bronze contacts for reliable signal transmission.

Applications

• Board-to-board interconnects
• Stacking configurations
• Power distribution modules

Procurement Notes

Verify the specific suffix codes against official datasheets to confirm exact contact length and housing variations. Ensure compatibility with mating socket components within the same Gecko-Latch series. Confirm RoHS compliance status through manufacturer documentation prior to final procurement decisions.

Selection Notes

Select this component when a low-profile, high-density connection is required for vertical stacking. Verify that the SMT mounting style aligns with the assembly process capabilities. Ensure the 1.25 mm pitch matches the target PCB footprint requirements and that the 2 A current rating suffices for the intended power load.

Part Context

This part belongs to the Harwin Gecko-Latch family, which specializes in robust, latching interconnect solutions. The series is engineered for demanding environments requiring secure mechanical retention without soldering the mating interface directly.

Replacement Considerations

Consult official cross-reference lists for direct substitutes. Generic equivalents may lack the specific latching mechanism or profile dimensions required for proper function.
