G125-MV10605L0P

Overview

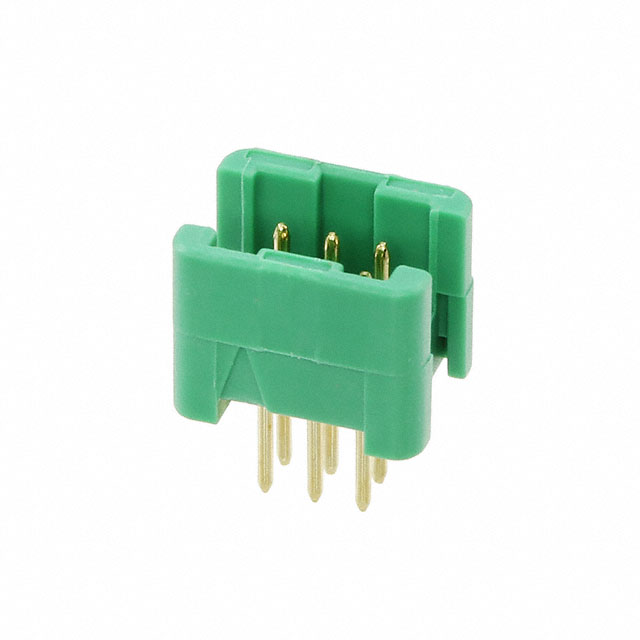

The Harwin G125-MV10605L0P is a Gecko-SL series male header connector designed for through-hole board mounting. It features a 6-position, 2-row configuration with a 1.25 mm pitch and straight orientation. The contacts are gold-plated phosphor bronze pins rated for 2 A current. Operating within a temperature range of -65°C to +150°C, the housing is green polyamide (PA) with UL 94 V-0 flammability rating. This component lacks mechanical latching mechanisms.

Feature Summary

• Gold-plated phosphor bronze male pin contacts ensure reliable signal transmission
• Green polyamide insulation housing provides thermal stability up to 150°C
• Straight through-hole solder termination facilitates standard PCB assembly

Applications

• General electronic interconnects requiring high reliability
• Industrial control systems operating in extreme temperatures
• Automotive electronics modules

Procurement Notes

Verify the specific suffix 'L0' confirms the absence of latching mechanisms, as other variants may include jack-screw or push-pull locks. Confirm RoHS compliance status via official documentation before integration. Ensure the straight orientation matches the target PCB layout requirements.

Selection Notes

Select this part when a non-latching, vertical male header is required for 1.25 mm pitch applications. Consider alternative suffixes if board-locking features or right-angle configurations are necessary. Validate that the 2 A current rating meets the circuit demands.

Part Context

This component belongs to the Harwin Gecko-SL family, which specializes in micro-miniature connectors. The series offers various contact counts and locking options. The G125-MV10605L0P represents the basic vertical male variant without additional retention hardware.

Replacement Considerations

Direct substitutes within the same series include G125-MV10605L0R (tape and reel packaging) and G125-MV10605L1P (different packaging). Verify compatibility with mating female sockets from the same Gecko-SL line.
