G125-MV10605L0R

Overview

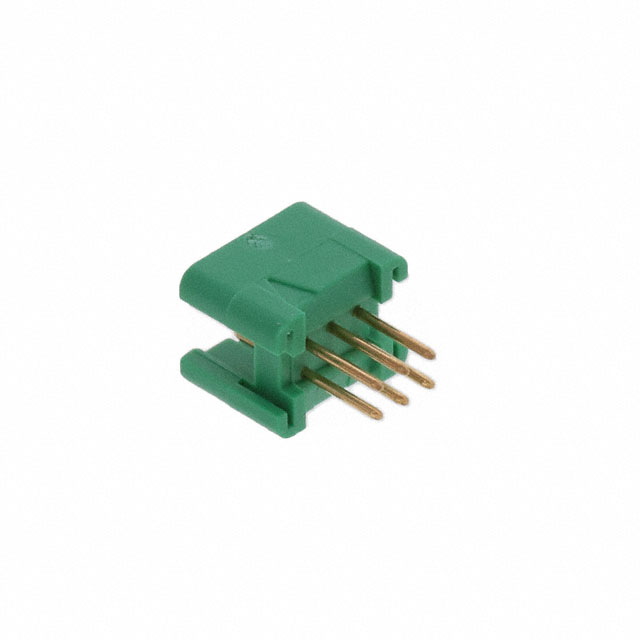

The G125-MV10605L0R is a male pin header connector from the Harwin Gecko SL series, designed for through-hole mounting. It features a 6-position configuration arranged in a dual inline (DIL) format with two rows of three contacts each. The connector utilizes a 1.25 mm pitch and a 1.25 mm row spacing to support compact board layouts. Electrical specifications include a rated current of 2 A per contact and an insulation resistance of 1 GOhm. The operating temperature range spans from -65°C to +150°C. Mechanical dimensions include a contact length of 3.00 mm and an insulation height of 4.90 mm. The housing is constructed from green polyamide (PA4T), reinforced with glass fiber and formulated to be halogen-free, meeting UL 94 V-0 flammability standards.

Feature Summary

• Features a jack-screw locking mechanism for secure mating connections
• Incorporates a four-wall shielded design for enhanced signal integrity
• Utilizes gold-plated phosphor bronze contacts for reliable conductivity
• Supports pick-and-place assembly processes for automated manufacturing

Applications

• High-reliability industrial control systems
• Automotive electronic modules
• Medical instrumentation interfaces
• Telecommunications equipment backplanes

Procurement Notes

Verify that the specific ordering suffix corresponds to the required reel quantity and tape configuration for surface-mount assembly lines. Confirm that the halogen-free material composition aligns with project environmental compliance requirements. Ensure the jack-screw locking style matches the mechanical constraints of the target enclosure design. Cross-reference the datasheet version to confirm the active status of the component before finalizing procurement orders.

Selection Notes

Select this component when a robust, high-reliability interconnect solution is required for space-constrained applications. The Gecko SL series offers superior retention force compared to standard headers due to its unique locking mechanism. Consider the 1.25 mm pitch for dense wiring scenarios where smaller footprints are necessary. Evaluate the thermal performance capabilities against the maximum ambient temperatures expected in the operational environment.

Part Context

This part belongs to the broader G125 Gecko family of micro-miniature connectors manufactured by Harwin Inc. The series is engineered for demanding environments requiring high vibration resistance and secure mating. The G125-MV10605L0R specifically represents the vertical male header variant within this ecosystem, complementing corresponding socket and hood accessories to form complete connection assemblies.

Replacement Considerations

G125-MV10605L0P
