G125-MV10605L1P

Overview

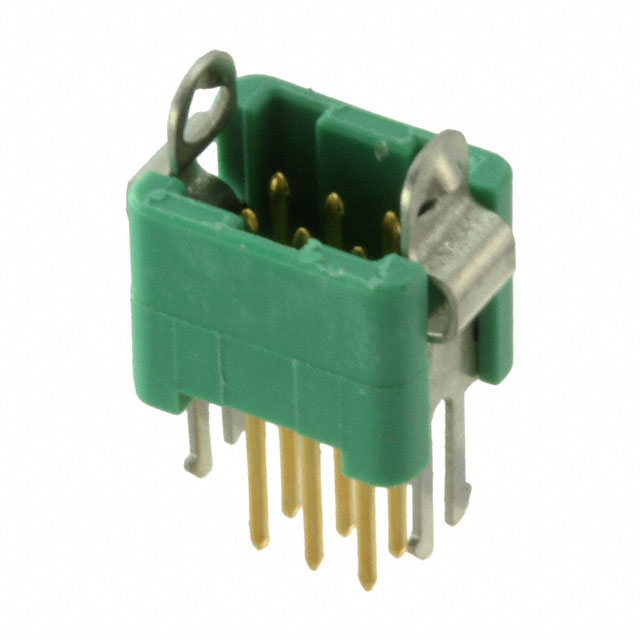

The Harwin G125-MV10605L1P is a Gecko-SL series male header connector designed for power-to-board applications. It features a 1.25 mm pitch and a 2x3 position configuration, providing six contact points. The component utilizes vertical through-hole termination with gold-plated phosphor bronze contacts to ensure reliable signal transmission. Rated for 2 A current and up to 450 V voltage, it operates within a temperature range of -65°C to +150°C. The housing is constructed from green polyamide (PA) material with UL 94 V-0 flammability rating.

Feature Summary

• Vertical through-hole mounting style with polarized lock latching mechanism
• Gold-plated phosphor bronze contacts for corrosion resistance
• Polyamide housing with UL 94 V-0 flammability rating
• High insulation resistance of 10 GOhms

Applications

• Power distribution modules in industrial equipment
• Control board interconnections in automation systems
• Embedded system hardware interfaces

Procurement Notes

Verify the specific suffix L1P against official Harwin documentation to confirm the 3mm tail length and latch type. Ensure compatibility with mating female sockets from the same Gecko-SL family. Check RoHS compliance status via manufacturer datasheets before integration into regulated assemblies.

Selection Notes

Select this part when vertical orientation and secure latching are required for PCB-mounted headers. The 1.25 mm pitch suits dense layouts, while the 2A rating supports moderate power loads. Consider the 3mm tail length for board thickness clearance and verify mating socket availability.

Part Context

This component belongs to the Harwin Gecko-SL family, which specializes in compact, high-reliability connectors for space-constrained electronics. The series offers various pin counts and termination styles, with this specific model focusing on vertical male plug configurations for robust board-to-board or wire-to-board connections.

Replacement Considerations

No direct public substitute part numbers are confirmed for this specific variant. Cross-reference only with other Harwin G125 series parts sharing identical pitch, row count, and latching mechanisms.

FAQ

What is the latching mechanism type for this connector?

The G125-MV10605L1P uses a polarized lock latching type to ensure secure mating.

Is the connector compatible with standard tape and reel packaging?

Yes, the datasheet indicates availability in tape and reel format for automated assembly.
