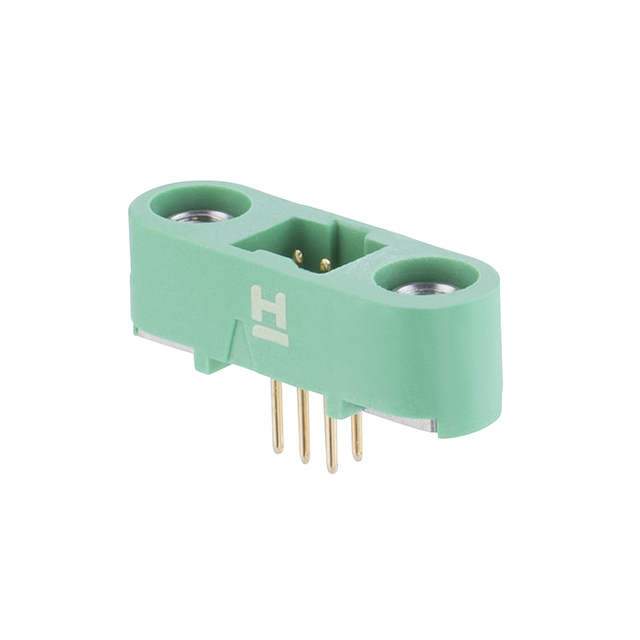

G125-MV10605M1R

Description：CONN HEADER VERT 6POS 1.25MM
Series：Gecko SL
Mfr：Harwin Inc.
Package：Tape & Reel (TR)

SKU:72c4e24c8d4b Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER VERT 6POS 1.25MM
Series：Gecko SL
Mfr：Harwin Inc.
Package：Tape & Reel (TR)
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.049" (1.25mm)
Number of Positions：6
Number of Rows：2
Row Spacing - Mating：0.049" (1.25mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Threaded
Contact Length - Mating：-
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：-
Insulation Height：0.193" (4.90mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：8.00µin (0.203µm)
Contact Finish - Post：Gold
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features：Mating Flange, Pick and Place, Polarizing Key
Operating Temperature：-65°C ~ 150°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Green
Current Rating (Amps)：2A
Voltage Rating：450V

Download product information

G125-MV10605M1R

Overview

The Harwin G125-MV10605M1R is a Gecko-SL series male header connector featuring a 1.25 mm pitch and two rows of six positions. Designed for through-hole mounting, it utilizes solder pin termination with right-angle orientation. The contacts are made of phosphor bronze with gold plating, rated for 2 A current at 450 V. Operating temperatures range from -65°C to +150°C. The housing is green polyamide (PA) with UL 94 V-0 flammability rating.

Feature Summary

Features a jackscrew locking mechanism for secure board attachment.
Includes polarizing keys to ensure correct mating alignment.
Supports pick-and-place automation for surface mount efficiency.

Applications

High-reliability industrial control systems
Automotive electronic modules
Aerospace communication equipment

Procurement Notes

Verify the specific suffix codes against official datasheets to confirm mechanical variations such as mounting style or contact length. Ensure compatibility with mating sockets within the same Gecko-SL family. Confirm RoHS compliance status via manufacturer documentation before integration into regulated assemblies.

Selection Notes

Select this component when a compact, high-density interconnect solution is required for harsh environments. The 1.25 mm pitch allows for dense routing while maintaining robust electrical performance. Consider the right-angle form factor for space-constrained PCB layouts requiring perpendicular cable exit.

Part Context

This part belongs to the Harwin Gecko-SL family, designed for demanding applications requiring high reliability. The series offers various configurations including SMT and THT options with consistent 1.25 mm spacing across the product line.

Replacement Considerations

No direct public substitute part numbers are documented. Cross-reference only within the Harwin G125-MV1XX05M1R series for identical mechanical and electrical specifications.
