G125-MV10605M2R

$8.14

Description：CONN HDR VERT 6POS
Series：Gecko SL
Mfr：Harwin Inc.
Package：Tape & Reel (TR)

SKU:3b75a1a9f2a0 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HDR VERT 6POS
Series：Gecko SL
Mfr：Harwin Inc.
Package：Tape & Reel (TR)
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.049" (1.25mm)
Number of Positions：6
Number of Rows：2
Row Spacing - Mating：0.049" (1.25mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Threaded
Contact Length - Mating：-
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：-
Insulation Height：0.193" (4.90mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：8.00µin (0.203µm)
Contact Finish - Post：Gold
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features：Mating Flange, Mounting Flange, Pick and Place
Operating Temperature：-65°C ~ 150°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2A
Voltage Rating：450VAC/DC

Download product information

G125-MV10605M2R

Overview

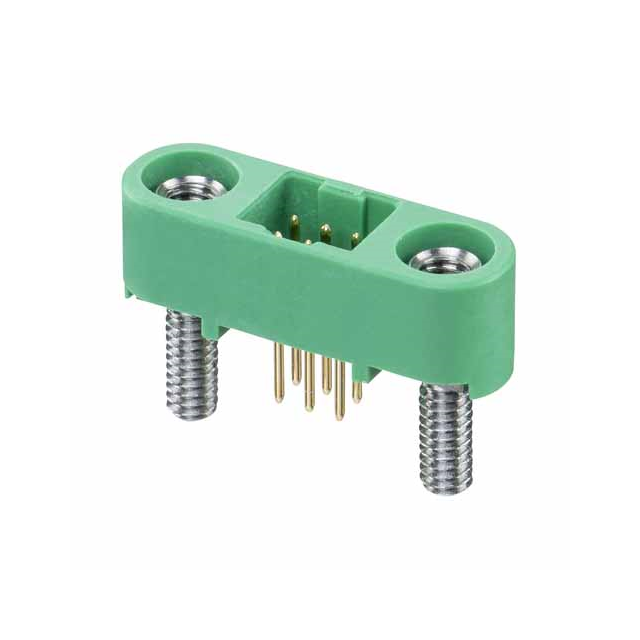

The G125-MV10605M2R is a Gecko-SL series male pin header connector manufactured by Harwin Inc. It features a 6-position configuration with a 1.25mm pitch and two rows. Designed for vertical through-hole mounting, it utilizes solder pin termination. The contacts are made of phosphor bronze with gold plating, rated for 2A current and 250V/450V voltage. The housing is green polyamide (PA), offering UL 94 V-0 flammability rating and operation between -65°C and +150°C. It includes a threaded joint locking system.

Feature Summary

Features a threaded jack screw locking mechanism for secure board-to-board or cable connections.
Constructed with gold-plated phosphor bronze contacts to ensure reliable signal transmission.
Utilizes green polyamide insulation providing high thermal stability and UL 94 V-0 fire resistance.

Applications

High-reliability industrial control systems
Automotive electronic modules
Telecommunications infrastructure equipment

Procurement Notes

Verify the specific suffix 'M2' confirms the threaded jack screw locking feature, as this distinguishes it from push-pull variants like the L0 series. Confirm RoHS compliance status via the manufacturer's latest datasheet. Ensure the reel packaging quantity matches production requirements. Check for any recent PCN updates regarding material composition changes.

Selection Notes

Select this component when a secure mechanical lock is required for 1.25mm pitch interconnects in space-constrained designs. The vertical orientation suits panel or board stacking applications. Compare against the L0 series if a push-pull locking mechanism is preferred instead of threaded fasteners. Ensure mating connectors support the 1.25mm row spacing and compatible contact geometry.

Part Context

This part belongs to the Harwin Gecko-SL family, designed for micro-miniature applications requiring high durability. The series supports up to 1000 mating cycles and offers both signal (2A) and power (10A) options. The G125-MV1 base number indicates a vertical male header, while the suffix defines the locking style and packaging.
