Product Detailed Parameters
- Description：CONN HEADER VERT 6POS 1.25MM
- Series：Gecko SL Reverse Fix
- Mfr：Harwin Inc.
- Package：Strip
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.049" (1.25mm)
- Number of Positions：6
- Number of Rows：2
- Row Spacing - Mating：0.049" (1.25mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Screw Lock
- Contact Length - Mating：-
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：-
- Insulation Height：0.193" (4.90mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：8.00µin (0.203µm)
- Contact Finish - Post：Gold
- Contact Material：Phosphor Bronze
- Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
- Features：Mating Flange, Mounting Flange, Pick and Place
- Operating Temperature：-65°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Green
- Current Rating (Amps)：2A
- Voltage Rating：450V
Download product information
Overview

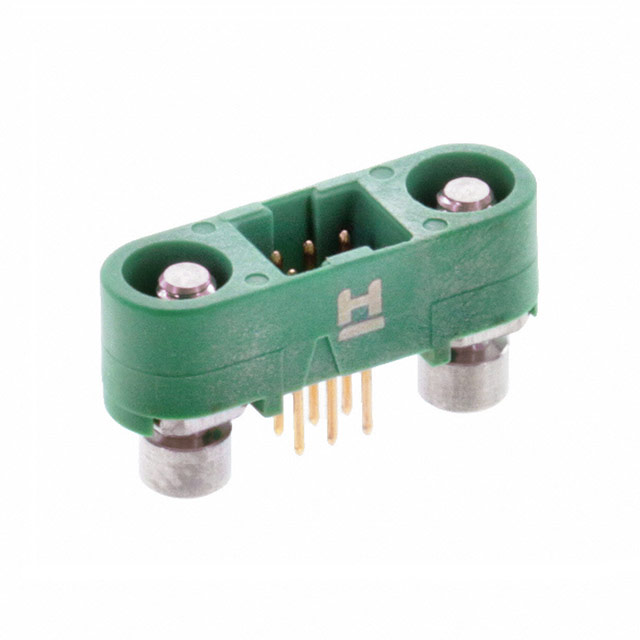

The G125-MV10605M3P is a power-to-board connector from the Harwin Gecko-SL series. It features a 1.25 mm pitch and a 2x3 configuration, providing 6 positions. The component utilizes male pin contacts made of beryllium copper with gold plating. Designed for through-hole mounting, it employs a reverse fix housing mechanism. The rated current is 2 A per contact. Operating temperatures range from -65 C to +150 C. The housing is constructed from nylon and is green in color.
Feature Summary
- Reverse fix housing design for secure board retention
- Gold-plated beryllium copper male pin contacts
- Through-hole solder pin termination style
Applications
- Industrial control systems
- Data center infrastructure
- Aerospace electronic assemblies
Procurement Notes
Verify the specific Gecko-SL series datasheet for complete mechanical dimensions and mating partner compatibility. Confirm that the reverse fix housing requirement aligns with the assembly design. Ensure the 2 A current rating and temperature limits meet the application's thermal profile. Cross-reference the 1.25 mm pitch against existing PCB footprints to prevent installation errors.
Selection Notes
Select this part when a low-profile, high-density power connection is required on a printed circuit board. The Gecko-SL series offers a compact form factor suitable for space-constrained designs. The reverse fix feature provides enhanced mechanical stability compared to standard headers. Consider the 150 C maximum operating temperature for high-heat environments.
Part Context
This component belongs to the Harwin Gecko-SL family, which specializes in power-to-board interconnects. The series is characterized by its small footprint and robust construction. It complements other Gecko-SL variants that offer different row counts and mounting styles. The product line targets applications demanding reliable electrical connections in harsh conditions.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires matching the 1.25 mm pitch, 2x3 position count, male pin type, and reverse fix housing mechanism. Verify that any alternative component meets the same 2 A current rating and temperature specifications.
