Product Detailed Parameters
- Description：CONN HEADER VERT 6POS 1.25MM
- Series：Gecko SL Reverse Fix
- Mfr：Harwin Inc.
- Package：Tape & Reel (TR)
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.049" (1.25mm)
- Number of Positions：6
- Number of Rows：2
- Row Spacing - Mating：0.049" (1.25mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：-
- Insulation Height：0.193" (4.90mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：8.00µin (0.203µm)
- Contact Finish - Post：Gold
- Contact Material：Phosphor Bronze
- Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
- Features：Mating Flange, Mounting Flange, Pick and Place, Polarizing Key
- Operating Temperature：-65°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Green
- Current Rating (Amps)：2A
- Voltage Rating：450V
Download product information
Overview

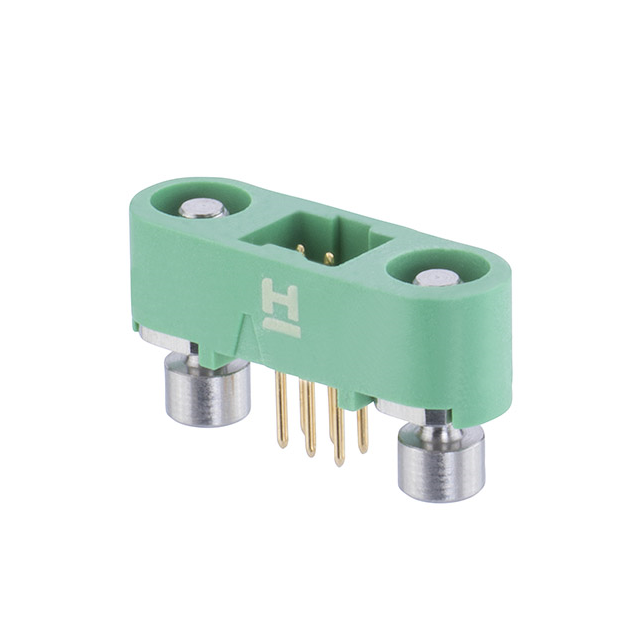

The Harwin G125-MV10605M3R is a Gecko-SL series power-to-board connector featuring a 1.25 mm pitch and a 2x3 (6 position) arrangement. It utilizes male pin contacts made of phosphor bronze with gold plating, rated for 2 A current. Designed for surface mount installation at a straight angle, it employs a reverse fix mounting style. The housing is constructed from green polyamide material compliant with UL 94 V-0 flammability standards. Operating temperatures range from -65°C to +150°C.
Feature Summary
- Reverse fix mounting mechanism ensures secure board attachment
- Gold-plated phosphor bronze contacts provide reliable conductivity
- High-temperature resistant polyamide insulation supports demanding environments
Applications
- Industrial control systems requiring compact power distribution
- Automotive electronics utilizing surface mount assembly
- Consumer devices needing high-density interconnects
Procurement Notes
Verify the specific suffix 'R' indicates reel packaging configuration when sourcing. Confirm RoHS compliance status through official manufacturer documentation prior to integration. Ensure compatibility with mating socket components within the same Gecko-SL family to maintain electrical integrity and mechanical fit.
Selection Notes
Select this component for applications necessitating a 1.25 mm pitch in a dual-row configuration. The reverse fix feature distinguishes it from standard vertical headers, offering alternative board retention methods. Consider the 2 A current rating and temperature limits against system requirements before finalizing the design.
Part Context
This part belongs to the Harwin Gecko-SL product line, which specializes in micro-miniature connectors. The series is characterized by its small footprint and robust performance in space-constrained electronic assemblies. It complements other variants in the G125 family designed for diverse mounting and contact configurations.
Replacement Considerations
Compatible substitutes include G125-MV10605M3P and G125-MV10605L0R. Verify that alternative part numbers match the required reverse fix mechanism and surface mount specifications to ensure functional equivalence.
