Product Detailed Parameters
- Description：CONN HEADER VERT 10POS 1.25MM
- Series：Gecko SL
- Mfr：Harwin Inc.
- Package：Bulk
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.049" (1.25mm)
- Number of Positions：10
- Number of Rows：2
- Row Spacing - Mating：0.049" (1.25mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：-
- Insulation Height：0.193" (4.90mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：8.00µin (0.203µm)
- Contact Finish - Post：-
- Contact Material：Phosphor Bronze
- Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
- Features：Mating Flange, Mounting Flange, Pick and Place
- Operating Temperature：-65°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Green
- Current Rating (Amps)：2A
- Voltage Rating：-
Download product information
Overview

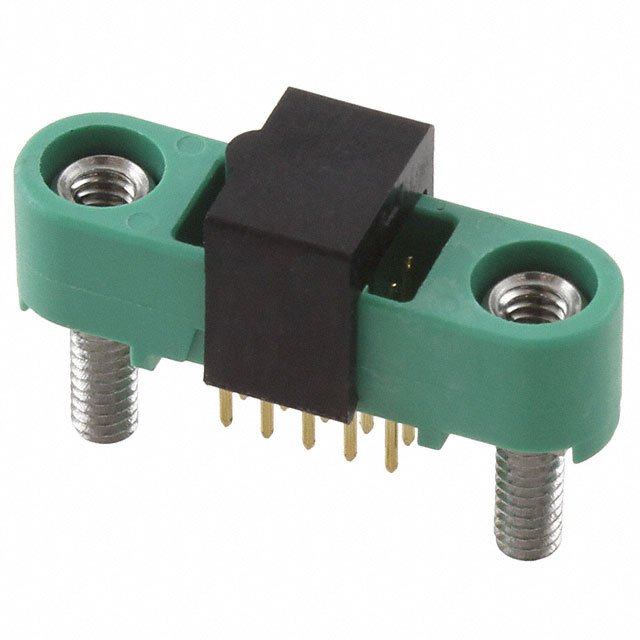

The Harwin G125-MV11005M2P is a Gecko-SL series vertical through-board connector designed for power-to-board applications. It features a 1.25 mm pitch with 10 positions arranged in two rows. The component utilizes gold-plated phosphor bronze contacts and includes screw fixings with 5mm board mount studs for secure attachment. It is supplied in pick-and-place tape and reel packaging to facilitate automated assembly processes.
Feature Summary
- Vertical male header configuration optimized for board-to-board or cable interconnects
- Integrated screw fixing mechanism with 5mm board mount studs for enhanced mechanical stability
- Gold-plated contact surfaces ensuring reliable electrical performance
- Automated assembly compatibility via pick-and-place tape and reel packaging
Applications
- Compact electronic device interconnects
- Power distribution modules
- Board-to-board signal transmission
Procurement Notes
Verify the specific ordering suffix against the manufacturer datasheet to ensure correct packaging and termination style. Confirm that the required screw fixing hardware matches the specified 5mm board mount stud dimensions. Cross-reference the contact plating and current ratings with the official technical documentation before finalizing procurement orders.
Selection Notes
Select this component when a vertical male header with integrated mechanical fixation is required. Ensure the design accommodates the 1.25 mm pitch and 10-position layout. Verify that the PCB layout supports the through-board mounting method and provides adequate clearance for the screw fixing mechanism during assembly.
Part Context
This part belongs to the Harwin Gecko-SL series, which focuses on compact power connectors. The series is characterized by high-density layouts and robust mechanical features suitable for demanding industrial and consumer electronics environments. The model number indicates specific pin count, pitch, and mounting characteristics within this product family.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's official cross-reference list for verified alternatives.
