Product Detailed Parameters
- Description：CONN HEADER VERT 10POS 1.25MM
- Series：Gecko SL Reverse Fix
- Mfr：Harwin Inc.
- Package：Strip
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.049" (1.25mm)
- Number of Positions：10
- Number of Rows：2
- Row Spacing - Mating：0.049" (1.25mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Screw Lock
- Contact Length - Mating：-
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：-
- Insulation Height：0.193" (4.90mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：8.00µin (0.203µm)
- Contact Finish - Post：Gold
- Contact Material：Phosphor Bronze
- Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
- Features：Mating Flange, Mounting Flange, Pick and Place
- Operating Temperature：-65°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Green
- Current Rating (Amps)：2A
- Voltage Rating：450V
Download product information
Overview

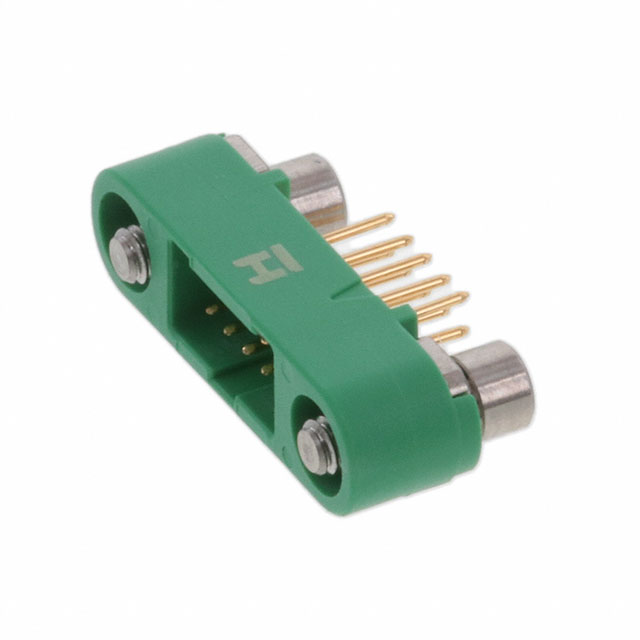

The Harwin G125-MV11005M3P is a Gecko-SL series power-to-board connector featuring a male pin configuration with a 1.25 mm pitch and two rows of five positions. It utilizes reverse fixing for secure board attachment and operates within a temperature range of -65°C to +150°C. The contacts are gold-plated beryllium copper, rated for 2 A current and 250 V voltage. The housing is green nylon, ensuring UL 94 V-0 flammability compliance.
Feature Summary
- Features reverse fixing mechanism for enhanced mechanical stability
- Utilizes gold-plated beryllium copper contacts for reliable conductivity
- Constructed with green nylon housing meeting UL 94 V-0 standards
Applications
- Industrial control systems requiring robust power connections
- Automotive electronics demanding high vibration resistance
- Consumer appliances needing compact power interfaces
Procurement Notes
Verify the specific suffix 'M3P' against official Harwin documentation to confirm the reverse fixing feature and packaging details. Ensure compatibility with mating sockets in the same Gecko-SL series. Check for RoHS and REACH compliance status prior to integration into regulated environments.
Selection Notes
Select this component when high mechanical retention is required due to its reverse fixing design. Consider the 1.25 mm pitch for space-constrained layouts. Verify that the 2 A current rating meets system power requirements. Ensure the operating temperature range aligns with the application environment.
Part Context
This part belongs to the Harwin Gecko-SL family, designed for dense power distribution. The series emphasizes secure locking mechanisms and compact form factors. It supports both through-hole and surface-mount variants within the broader product line.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided data. Cross-reference with other Gecko-SL male connectors only if mechanical dimensions and electrical ratings match exactly.
