G125-MV11205L0P

$5.00

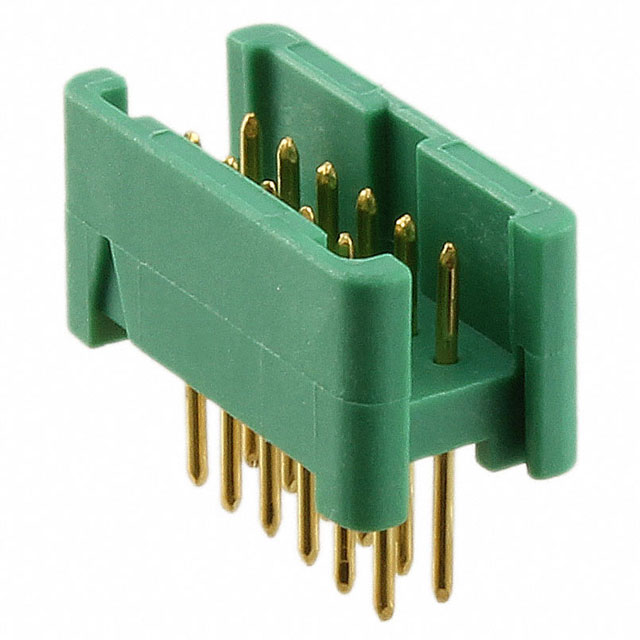

Description：CONN HEADER VERT 12POS 1.25MM
Series：Gecko
Mfr：Harwin Inc.
Package：Strip

SKU:6ebca4a19740 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER VERT 12POS 1.25MM
Series：Gecko
Mfr：Harwin Inc.
Package：Strip
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.049" (1.25mm)
Number of Positions：12
Number of Rows：2
Row Spacing - Mating：0.049" (1.25mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：-
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：-
Insulation Height：0.193" (4.90mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：8.00µin (0.203µm)
Contact Finish - Post：-
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features：Board Lock, Pick and Place
Operating Temperature：-65°C ~ 150°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Green
Current Rating (Amps)：2A per Contact
Voltage Rating：-

Download product information

G125-MV11205L0P

Overview

The Harwin G125-MV11205L0P is a Gecko-SL series power-to-board connector featuring a 1.25 mm pitch and two rows of male pin contacts. It provides five positions per row, totaling ten connections, with a vertical through-hole mounting style for direct board integration. The component utilizes gold-plated beryllium copper contacts housed in green nylon insulation rated UL94 V-0. It supports a current rating of 2 A per contact and operates within a temperature range of -65°C to +150°C.

Feature Summary

Vertical through-hole mounting design for secure PCB attachment
Gold-plated beryllium copper contacts for reliable conductivity
Green nylon housing with UL94 V-0 flammability rating

Applications

Power distribution modules requiring compact vertical interconnects
Industrial control systems utilizing Gecko-SL mating components
Embedded electronics needing high-temperature stable connections

Procurement Notes

Verify the specific ordering suffix against the official Harwin datasheet to ensure correct contact plating thickness and housing color specifications. Confirm that the selected variant matches the required 1.25 mm pitch and vertical orientation for your PCB layout. Cross-reference the RoHS compliance status with the latest product change notices to ensure regulatory adherence for your target market.

Selection Notes

Select this component when a low-profile vertical header is required for power delivery in space-constrained designs. Ensure compatibility with the corresponding female socket or wire housing from the Gecko-SL family. Validate that the 2 A current rating meets the thermal requirements of the application circuit. Check mechanical constraints to confirm the vertical height fits within the assembly envelope.

Part Context

This part belongs to the Harwin Gecko-SL series, designed for high-density power-to-board applications. The series emphasizes compactness and reliability in harsh environments. The G125-MV11205L0P specifically addresses needs for vertical interconnection with robust electrical performance. It complements other series variants offering different pitches and contact configurations.
