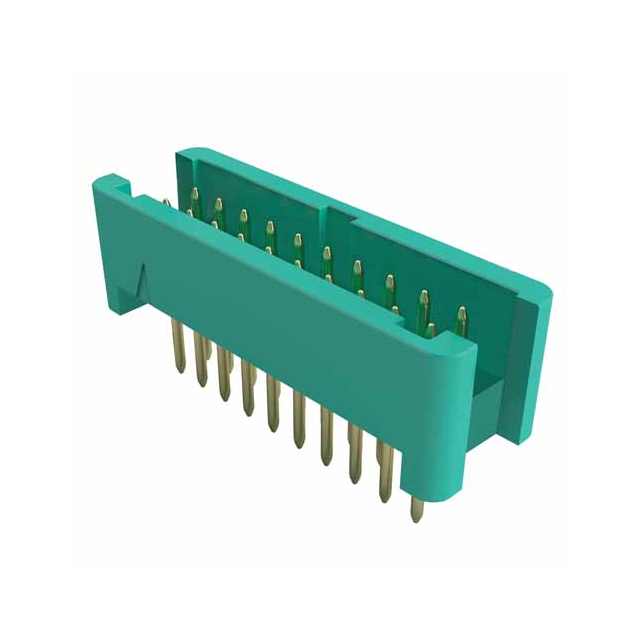

G125-MV11605L0R

Description：CONN HEADER VERT 16POS 1.25MM
Series：Gecko
Mfr：Harwin Inc.
Package：Tape & Reel (TR)

SKU:6ea1c1129921 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER VERT 16POS 1.25MM
Series：Gecko
Mfr：Harwin Inc.
Package：Tape & Reel (TR)
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.049" (1.25mm)
Number of Positions：16
Number of Rows：2
Row Spacing - Mating：0.049" (1.25mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：-
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：-
Insulation Height：0.193" (4.90mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：8.00µin (0.203µm)
Contact Finish - Post：-
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features：Board Lock, Pick and Place
Operating Temperature：-65°C ~ 150°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Green
Current Rating (Amps)：2A per Contact
Voltage Rating：-

Download product information

G125-MV11605L0R

Overview

The G125-MV11605L0R is a Gecko-Latch series power-to-the-board connector manufactured by Harwin. It features a vertical through-hole design with 16 positions arranged in a dual-row configuration. The component utilizes a 1.25 mm pitch and accepts phosphor bronze contacts with gold plating. Rated for 2 A current, it supports operating temperatures from -65°C to +150°C. The housing is constructed from polyamide (PA) and includes a latching mechanism for secure board retention.
