G125-MV11605L1P

Overview

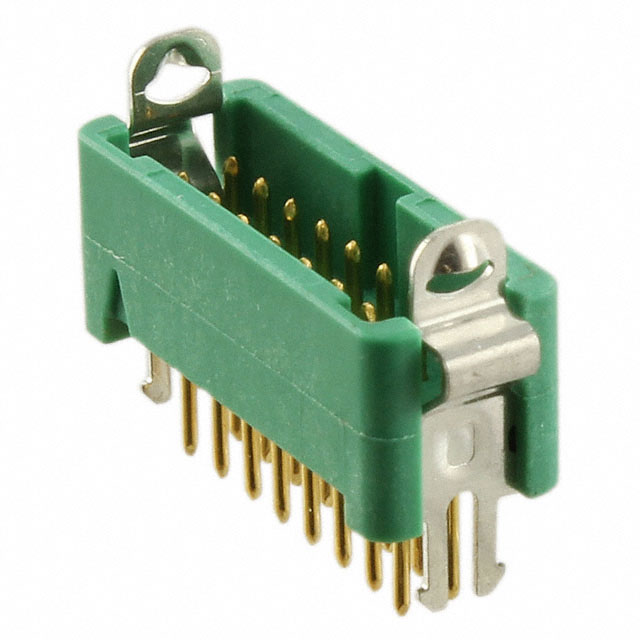

The Harwin G125-MV11605L1P is a Gecko-Latch male vertical through-board connector featuring a 1.25 mm pitch and 16 positions in a dual-row configuration. It utilizes phosphor bronze contacts with gold plating, rated for 2 A current and up to 450 V voltage. The housing is green polyamide (PA) with UL 94 V-0 flammability rating. Designed for tape and reel packaging, it supports automated pick-and-place assembly. Operating temperature ranges from -65°C to +150°C, with an insulation resistance of 10 GOhms.

Feature Summary

• Integrates polarized locking mechanism for secure mating alignment
• Supports automated surface-mount assembly via tape and reel packaging
• Features high-temperature resistant polyamide housing material

Applications

• High-density board-to-board interconnects
• Automated manufacturing environments requiring pick-and-place compatibility
• Power distribution modules within compact electronic assemblies

Procurement Notes

Verify the specific suffix 'L1P' confirms tape and reel packaging rather than loose piece format. Ensure the polarized locking feature aligns with mating connector requirements. Confirm that the 450 V rating meets system isolation standards. Check for RoHS compliance documentation if required by project specifications.

Selection Notes

Select this component when automated assembly efficiency is critical due to its tape and reel format. The polarized locking design prevents incorrect mating, enhancing reliability in dense layouts. Consider the 1.25 mm pitch for space-constrained applications requiring robust mechanical retention and electrical performance under varying thermal conditions.

Part Context

This part belongs to the Gecko-Latch series, distinguished by its integrated latching system compared to standard Gecko connectors. It complements female counterparts in the same family to form complete interconnect solutions. The series emphasizes high-reliability connections suitable for demanding industrial and consumer electronics applications.

Replacement Considerations

Direct substitutes include other Harwin Gecko-Latch variants with matching 1.25 mm pitch and 16-position configurations. Verify that alternative parts maintain the polarized locking feature and compatible packaging format for seamless integration without retooling.

FAQ

What is the maximum operating voltage for this connector?

The connector is rated for up to 450 V.

Does this connector include a latching mechanism?

Yes, it features a polarized locking mechanism for secure connection.
