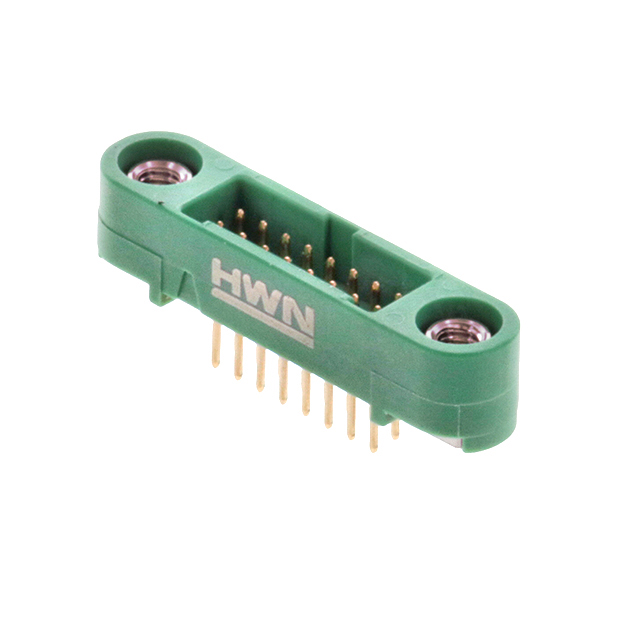

G125-MV11605M1P

$12.46

Description：CONN HEADER VERT 16POS 1.25MM
Series：Gecko SL
Mfr：Harwin Inc.
Package：Strip

SKU:a31b99c9c3b3 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER VERT 16POS 1.25MM
Series：Gecko SL
Mfr：Harwin Inc.
Package：Strip
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.049" (1.25mm)
Number of Positions：16
Number of Rows：2
Row Spacing - Mating：0.049" (1.25mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Screw Lock
Contact Length - Mating：-
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：-
Insulation Height：0.193" (4.90mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：8.00µin (0.203µm)
Contact Finish - Post：Gold
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features：Mating Flange, Mounting Flange, Pick and Place
Operating Temperature：-65°C ~ 150°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Green
Current Rating (Amps)：2A
Voltage Rating：450V

Download product information

G125-MV11605M1P

Overview

The Harwin G125-MV11605M1P is a Gecko-SL series power-to-board connector header featuring a 1.25 mm pitch and 16 positions arranged in a dual row (2x8). It utilizes male pin contacts made of beryllium copper with gold plating, rated for 2 A current. Designed for through-hole mounting with solder pins, the unit operates within a temperature range of -65°C to +150°C. The housing is constructed from green nylon, ensuring mechanical stability and electrical insulation for high-density board connections.

Feature Summary

Reverse fix mechanism ensures secure board attachment
Gold-plated beryllium copper contacts provide reliable conductivity
Vertical orientation supports compact PCB layouts

Applications

Industrial control systems requiring robust power distribution
Automotive electronics demanding high-temperature reliability
Telecommunications infrastructure equipment

Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number with official Harwin documentation. Ensure the specific suffix matches the required reverse fix configuration and tape packaging format. Confirm RoHS compliance status through the latest datasheet before integration into production workflows.

Selection Notes

Select this component when a vertical, through-hole power header with a 1.25 mm pitch is required. The 16-position dual-row layout suits applications needing moderate current capacity with secure mechanical locking. Consider the reverse fix feature for enhanced vibration resistance in dynamic environments.

Part Context

This part belongs to the Harwin Gecko-SL family, designed for high-reliability power-to-board applications. The series emphasizes compactness and durability, utilizing screw-lock or reverse-fix mechanisms to prevent accidental disconnection. It serves as a critical interface between power sources and circuit boards in demanding sectors.
