G125-MV11605M3P

Overview

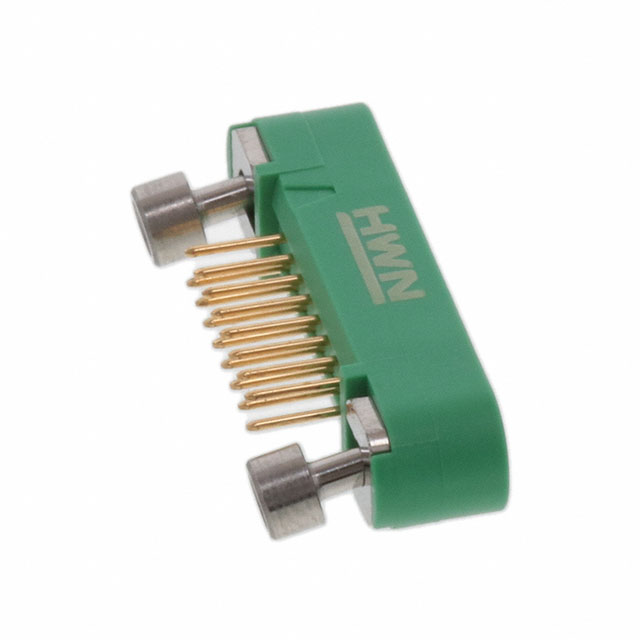

The Harwin G125-MV11605M3P is a Gecko-SL series male header connector designed for power-to-board applications. It features a 1.25 mm pitch with 16 positions arranged in a dual-row configuration. The component utilizes phosphor bronze contacts with gold plating and is rated for 2 A current and 450 V voltage. Designed for through-hole mounting, it operates within a temperature range of -65°C to +150°C.

Feature Summary

• High-reliability design suitable for demanding power-to-board environments
• Reverse fixing mechanism ensures secure board attachment
• Gold-plated phosphor bronze contacts provide stable electrical performance

Applications

• Industrial control systems requiring robust power connections
• Automotive electronics utilizing high-temperature connectors
• Telecommunications infrastructure equipment

Procurement Notes

Verify the specific suffix 'M3P' corresponds to the reverse fixing feature and tape packaging. Confirm that the phosphor bronze contact material meets the required mechanical endurance standards for the target application environment before finalizing procurement orders.

Selection Notes

Select this model when a 1.25 mm pitch male header with reverse fixing is required. Ensure the application demands a 2 A rating and through-hole installation. Verify compatibility with mating sockets from the same Gecko-SL family to maintain proper polarization and alignment.

Part Context

This part belongs to the Harwin Gecko-SL series, which offers high-density interconnect solutions. The series supports up to 50 contacts per connector and includes various configurations for board-to-board and wire-to-board connections, emphasizing reliability in harsh conditions.

Replacement Considerations

Compatible mating components include G125-FV11605L0P and G125-FS11605L0P female headers. These counterparts share the 1.25 mm pitch and Gecko-SL interface specifications.
