G125-MV12005M1P

Overview

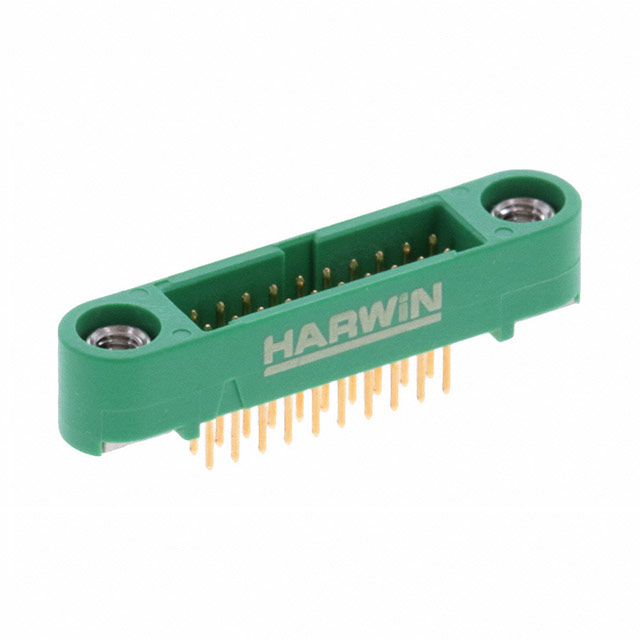

The Harwin G125-MV12005M1P is a Gecko-SL power-to-board connector featuring a 1.25 mm pitch and 20 positions arranged in two rows. It utilizes male pin contacts with gold plating for reliable signal transmission. Designed for vertical through-board mounting, this component incorporates reverse fixings to secure the connection. The unit is supplied in tape and reel packaging to facilitate automated pick-and-place assembly processes.

Feature Summary

• Vertical through-board mounting configuration with integrated reverse fixings for mechanical stability
• Gold-plated male pin contacts ensuring durable electrical connectivity
• Automated assembly compatibility via tape and reel packaging

Applications

• Industrial control systems requiring robust board-to-board connections
• Power distribution modules within electronic enclosures
• High-density interconnect applications in compact hardware designs

Procurement Notes

Verify that the specific ordering suffix matches the required reverse fixing orientation and packaging format. Confirm that the contact count and pitch align with the target PCB footprint. Ensure the voltage and current ratings meet the operational requirements of the intended circuit application before finalizing procurement.

Selection Notes

Select this component when a vertical power connector with secure mechanical locking is required. The Gecko-SL series offers high reliability for demanding environments. Consider the reverse fixing mechanism if standard screw retention is insufficient for the application's vibration or stress conditions.

Part Context

This part belongs to the Harwin Gecko-SL family, designed for high-reliability power and signal interconnections. The series supports various configurations including headers, sockets, and cable assemblies. The G125 prefix indicates the specific product line characteristics within the broader connector portfolio.

Replacement Considerations

No public confirmed substitute part numbers are available.
