G125-MV12605M2P

Overview

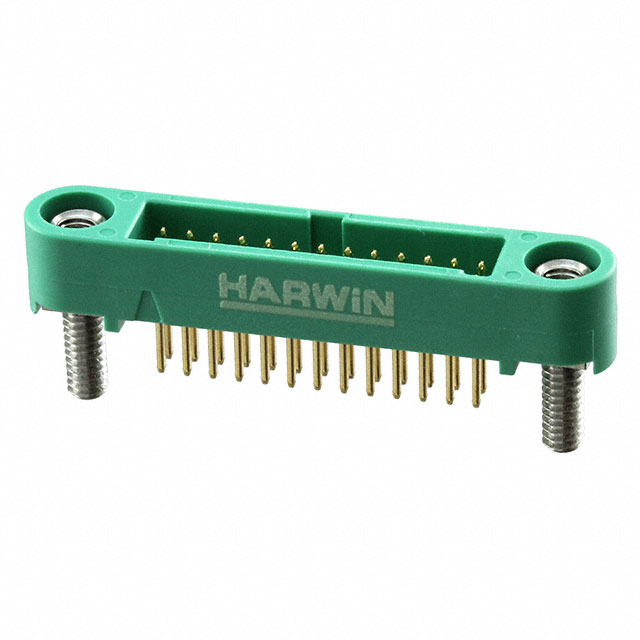

The Harwin G125-MV12605M2P is a Gecko-SL series male vertical PCB connector designed for power-to-the-board applications. It features a 1.25 mm pitch with a 2x13 contact configuration, totaling 26 positions. The component utilizes gold-plated phosphor bronze contacts and a thermoplastic housing. Rated for 2 A current and 450 V voltage, it supports surface mount solder termination. The operating temperature range spans from -65°C to +150°C, ensuring reliability in demanding electronic environments.

Feature Summary

• Threaded locking system provides secure mechanical connection between mating components.
• Gold-plated contacts ensure reliable electrical performance and corrosion resistance.
• Vertical surface mount design facilitates efficient board space utilization.

Applications

• Industrial control systems requiring robust power distribution
• Automotive electronics with high thermal stability needs
• Telecommunications infrastructure equipment

Procurement Notes

Verify the specific ordering suffix to confirm contact count, plating thickness, and packaging type. Ensure compatibility with mating female connectors within the same Gecko-SL series. Confirm RoHS compliance status through official manufacturer documentation before integration into regulated products.

Selection Notes

Select this connector when a vertical male header with threaded locking is required. The 1.25 mm pitch suits dense layouts. Verify that the 2 A current rating meets circuit demands. Ensure the PCB footprint matches the specified dimensions for proper solder joint formation during assembly.

Part Context

This part belongs to the Harwin Gecko-SL family, characterized by screw-fixing capabilities and high reliability. It complements other Gecko-SL headers and cable assemblies, forming a comprehensive interconnect solution for industrial and automotive sectors requiring secure, high-current connections.

Replacement Considerations

Direct substitutes include other Harwin Gecko-SL male vertical headers with identical 26-position layouts and 1.25 mm pitch. Cross-brand replacements require careful verification of locking mechanism compatibility and dimensional tolerances to ensure proper mating and mechanical security.

FAQ

What is the locking mechanism for this connector?

The G125-MV12605M2P uses a threaded joint locking system to secure the connection between male and female components.

What is the contact material and plating?

The contacts are made of phosphor bronze with a gold plating finish to enhance conductivity and durability.
