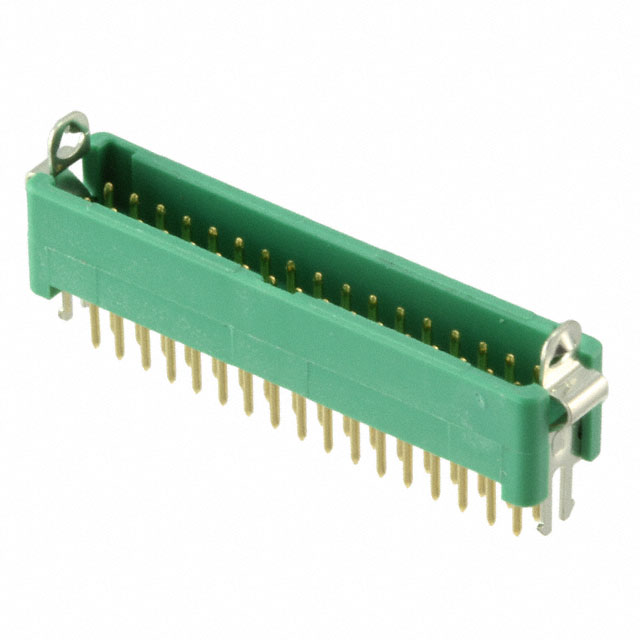

G125-MV13405L1R

$6.49

Description：CONN HEADER VERT 34POS 1.25MM
Series：Gecko
Mfr：Harwin Inc.
Package：Tape & Reel (TR)

SKU:a15037208e1c Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER VERT 34POS 1.25MM
Series：Gecko
Mfr：Harwin Inc.
Package：Tape & Reel (TR)
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.049" (1.25mm)
Number of Positions：34
Number of Rows：2
Row Spacing - Mating：0.049" (1.25mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Latch Lock
Contact Length - Mating：-
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：-
Insulation Height：0.193" (4.90mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：8.00µin (0.203µm)
Contact Finish - Post：-
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features：Board Lock, Pick and Place
Operating Temperature：-65°C ~ 150°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Green
Current Rating (Amps)：2A per Contact
Voltage Rating：-

Download product information

G125-MV13405L1R

Overview

The Harwin G125-MV13405L1R is a Gecko-Latch power-to-board connector featuring a 1.25 mm pitch male header with 34 positions arranged in two rows. It utilizes vertical through-hole solder termination and includes a 3.0 mm board mount stud for secure installation. The component supports a rated current of 2 A and voltage ratings of 250 V or 450 V. Constructed with phosphor bronze contacts gold-plated and polyamide housing, it operates within a temperature range of -65 C to +150 C.

Feature Summary

Features a jack-screw locking mechanism for secure mating retention
Designed for high-reliability power distribution applications
Includes integrated board mounting studs for mechanical stability

Applications

Industrial control systems requiring robust power connections
Medical equipment needing reliable signal and power interfaces
Automotive electronics utilizing high-density power buses

Procurement Notes

Verify the specific suffix L1R against official datasheets to confirm tape and reel packaging requirements. Ensure compatibility with mating sockets regarding the 3.0 mm stud height. Confirm RoHS compliance status through manufacturer documentation prior to integration into regulated assemblies.

Selection Notes

Select this part when vertical orientation and screw-locking security are required. Compare against standard Gecko headers if jack-screw complexity is unnecessary. Verify that the 1.25 mm row spacing fits within the available PCB footprint constraints for dual-row configurations.

Part Context

This component belongs to the Harwin Gecko-Latch series, designed for demanding environments. It complements the broader G125 family by adding mechanical locking features. The product line emphasizes durability and high contact density for space-constrained power applications.
