G125-MV15005L0P

Overview

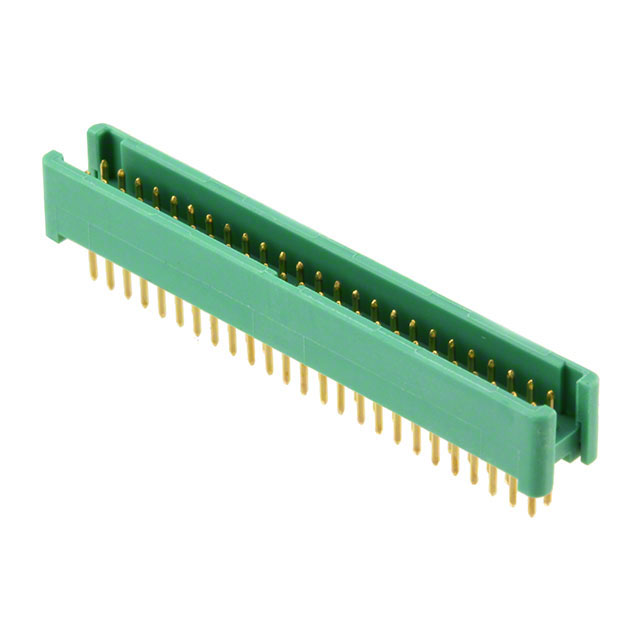

The G125-MV15005L0P is a Power to the Board header from Harwin's Gecko-Latch series. It features a 1.25 mm pitch, 34 positions (2x17), and male pin contacts. Designed for vertical through-hole mounting, it utilizes gold-plated phosphor bronze terminals within a polyamide housing. The component supports a current rating of 2 A and withstands voltages up to 250 V or 450 V. Operating temperatures range from -65 °C to +150 °C, with an insulation resistance of 1 GOhm.

Feature Summary

• Gecko-Latch mechanical retention system ensures secure mating stability
• Vertical orientation facilitates dense board-to-board interconnects
• Gold-plated phosphor bronze contacts provide reliable conductivity
• Polyamide housing offers thermal stability and electrical insulation

Applications

• High-density power distribution on printed circuit boards
• Board-to-board interconnection in compact electronic modules
• Industrial control systems requiring robust connector retention
• Telecommunications equipment power interfaces

Procurement Notes

Verify specific ordering suffixes against official datasheets to confirm contact configuration and housing color. Confirm RoHS compliance status via manufacturer documentation prior to integration. Ensure compatibility with mating socket components within the same Gecko-Latch series. Validate thermal ratings against operational environment requirements. Request updated technical drawings for footprint verification during design phase.

Selection Notes

Select this component when vertical mounting and secure latching are required for high-density power applications. The 1.25 mm pitch allows for significant pin counts in limited board areas. Verify that the 2 A current rating meets the load requirements of the target circuit. Consider the operating temperature range for environmental suitability. Ensure the through-hole soldering process aligns with assembly capabilities.

Part Context

This part belongs to the Harwin Gecko-Latch family, designed for demanding industrial and commercial environments. The series emphasizes mechanical security and high reliability. The G125-MV15005L0P specifically addresses needs for vertical power delivery with secure connection retention, differentiating it from standard unshrouded headers.

Replacement Considerations

Direct substitutes must match the 1.25 mm pitch, 34-position count, and vertical through-hole format. Compatible alternatives should feature similar Gecko-Latch retention mechanisms. Verify identical voltage and current ratings before substitution. Cross-reference pinout configurations to ensure electrical continuity.
