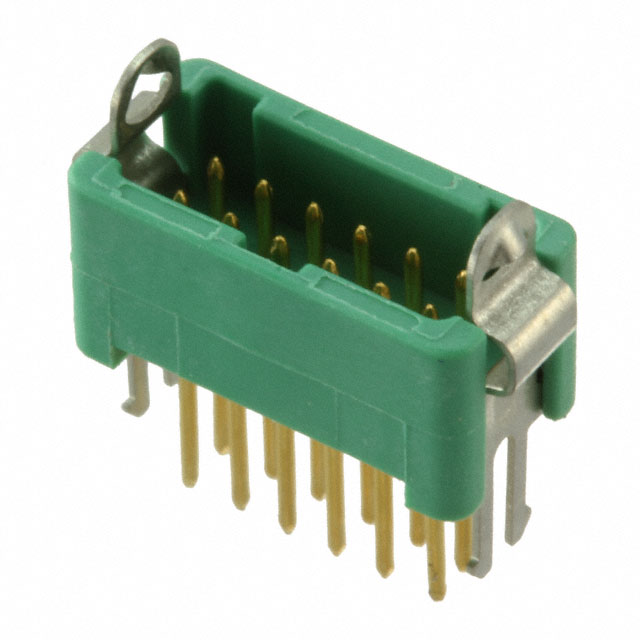

G125-MV21205L2P

Description：CONN HEADER VERT 12POS 1.25MM
Series：Gecko
Mfr：Harwin Inc.
Package：Bulk

SKU:2673abc337ac Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER VERT 12POS 1.25MM
Series：Gecko
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.049" (1.25mm)
Number of Positions：12
Number of Rows：2
Row Spacing - Mating：0.049" (1.25mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Latch Lock
Contact Length - Mating：-
Contact Length - Post：0.177" (4.50mm)
Overall Contact Length：-
Insulation Height：0.193" (4.90mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：8.00µin (0.203µm)
Contact Finish - Post：-
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features：Board Lock, Pick and Place
Operating Temperature：-65°C ~ 150°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Green
Current Rating (Amps)：2A per Contact
Voltage Rating：-

Download product information

G125-MV21205L2P

Overview

The G125-MV21205L2P is a male power-to-board connector from the Harwin Gecko-SL series. It features a 1.25 mm pitch and a 2x6 position configuration, totaling 12 contacts. Designed for through-hole mounting with a straight orientation, it utilizes gold-plated beryllium copper contacts rated for 2 A current and 250 V voltage. The housing is constructed from green nylon with a UL 94 V-0 flammability rating. Operating temperatures range from -65 C to +150 C, and the insulation resistance is specified at 10 GOhms.
