G125-MV21605L0P

Overview

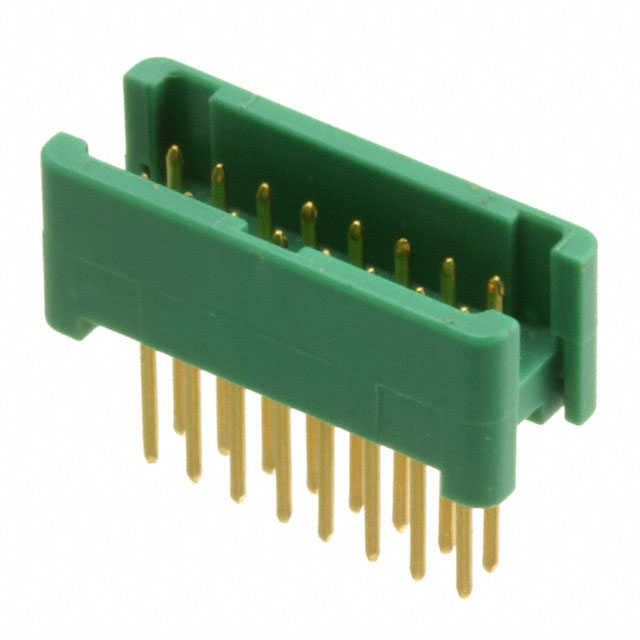

The Harwin G125-MV21605L0P is a Gecko series power-to-board connector featuring a 1.25 mm pitch and 16 positions in a dual-row configuration. It utilizes male pin contacts with gold plating on phosphor bronze, rated for 2 A current and 450 V voltage. The shrouded header employs solder pin termination for through-hole mounting at a straight angle. Operating temperatures range from -65 °C to +150 °C, with an insulation resistance of 1 GOhms.

Feature Summary

• Shrouded design provides contact alignment and protection during mating
• Gold-plated phosphor bronze pins ensure reliable conductivity
• Screw-fixing capability allows secure board attachment

Applications

• Industrial control systems requiring robust power distribution
• Automotive electronics modules
• Telecommunications infrastructure equipment

Procurement Notes

Verify the specific suffix L0P against official datasheets to confirm lead time and packaging details. Ensure compatibility with mating sockets within the same Gecko-Latch family. Confirm RoHS compliance status prior to integration into regulated assemblies.

Selection Notes

Select this component when high-density power connections are required in constrained spaces. The 1.25 mm pitch supports compact layouts while maintaining electrical safety margins. Verify that the 2 A rating per contact aligns with the thermal management strategy of the target application.

Part Context

This part belongs to the Harwin Gecko-Latch family, designed for high-reliability applications. The series emphasizes secure mechanical locking and dense interconnect capabilities. It serves as a critical interface between PCBs and external wiring or modules in demanding environments.

Replacement Considerations

No public confirmed substitute part numbers are available.
