G125-MV21605L2R

Overview

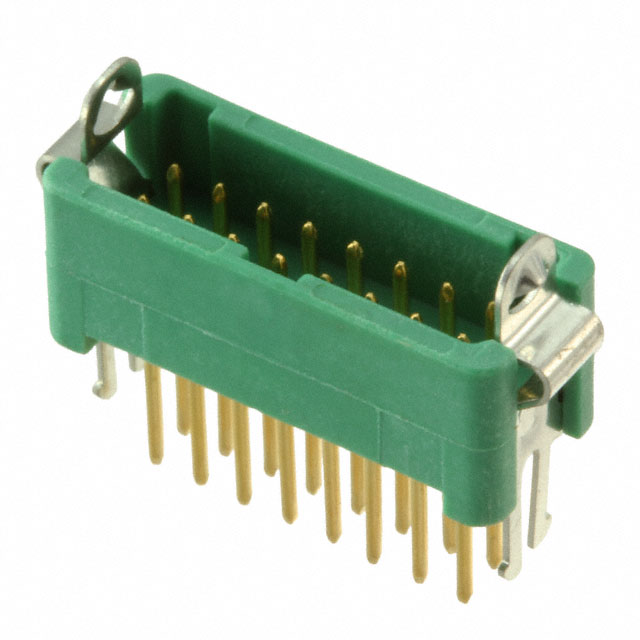

The Harwin G125-MV21605L2R is a male DIL vertical through-board connector from the Gecko-SL series. It features a 1.25 mm pitch and is designed for surface or board mounting applications requiring robust electrical connections. The component utilizes gold-plated phosphor bronze contacts to ensure reliable signal transmission and low contact resistance. Rated for 2 A current and up to 450 V voltage, it operates within a temperature range of -65 °C to +150 °C. The housing is constructed from polyamide (PA) with UL 94 V-0 flammability rating. Packaged in tape and reel format, this connector supports automated pick-and-place assembly processes.

Feature Summary

• Vertical dual-in-line male configuration for through-board mounting
• Gold-plated phosphor bronze contacts for enhanced conductivity
• Polyamide housing with high thermal stability and flame retardancy
• Tape and reel packaging compatible with automated assembly

Applications

• Industrial control systems requiring high-density interconnects
• Automotive electronics modules needing reliable power distribution
• Consumer appliance mainboards with strict space constraints
• Telecommunications equipment utilizing standardized connector interfaces

Procurement Notes

Verify that the specific order matches the G125-MV21605L2R part number exactly, as suffixes indicate critical variations in packaging and contact plating. Confirm compatibility with existing PCB footprints and mating connectors within the Gecko-SL ecosystem. Ensure storage conditions maintain the integrity of the gold plating and polyamide housing before installation.

Selection Notes

Select this component when a vertical male connector with a 1.25 mm pitch is required for through-board applications. Consider the 2 A current rating and 450 V voltage limit against system requirements. Evaluate the tape and reel packaging necessity for high-volume automated production lines versus bulk or cut-tape alternatives for prototyping.

Part Context

This connector belongs to the Harwin Gecko-SL family, known for its compact form factor and high reliability in demanding environments. The series offers various configurations including right-angle and surface-mount options. The G125-MV21605L2R specifically addresses needs for vertical insertion with durable metal contacts and thermoplastic insulation.

Replacement Considerations

Direct substitutes within the same series include G125-MV21605M2R for similar specifications with potential minor packaging differences. Cross-series replacements require careful evaluation of pitch, current ratings, and mechanical locking mechanisms to ensure functional equivalence without redesigning the host PCB.

FAQ

What is the maximum operating temperature for the G125-MV21605L2R?

The maximum operating temperature is +150 °C, while the minimum is -65 °C.

Does this connector support automated assembly?

Yes, it is supplied in tape and reel packaging specifically designed for pick-and-place automation.
