G125-MV22005L0P

Overview

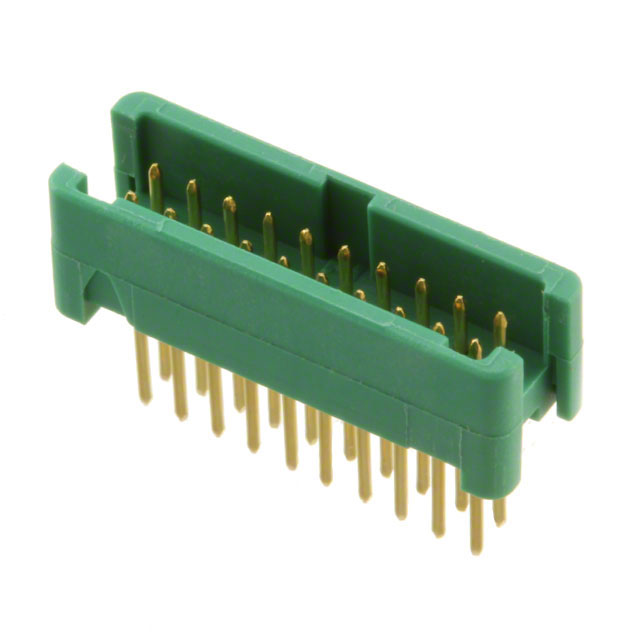

The Harwin G125-MV22005L0P is a Gecko-Latch series power-to-the-board connector designed for vertical through-hole mounting. It features a 1.25 mm pitch with 20 positions arranged in a dual-row configuration. The male contacts are constructed from beryllium copper and gold-plated, rated for 2 A current and 250 V voltage. The housing utilizes thermoplastic material, supporting an operating temperature range of -65°C to +150°C.

Feature Summary

• Vertical through-hole solder pin termination
• Dual-row 1.25 mm pitch geometry
• Gold-plated beryllium copper contacts

Applications

• Industrial control systems
• Power distribution modules
• Telecommunications equipment

Procurement Notes

Verify the specific suffix 'L0P' against the manufacturer datasheet to confirm housing color and latch mechanism details. Ensure the ordering code matches the required contact count and row configuration. Cross-reference RoHS compliance status directly with the official component specification document before procurement.

Selection Notes

Select this component when a vertical male header is required for high-density power connections. The 1.25 mm pitch allows for compact board layouts compared to larger spacing options. Verify that the mating socket provides compatible locking mechanisms if secure connection is necessary for the application environment.

Part Context

This part belongs to the Harwin Gecko-Latch family, which provides reliable interconnect solutions for demanding environments. The series supports various configurations including wire-to-board and backplane applications. The design emphasizes durability and consistent electrical performance across the product line.

Replacement Considerations

Compatible substitutes include other Harwin Gecko-Latch male headers with identical 1.25 mm pitch and 20-position dual-row layout. Verify mechanical dimensions and terminal plating specifications to ensure interchangeability.
