G125-MV22005L2P

$6.62

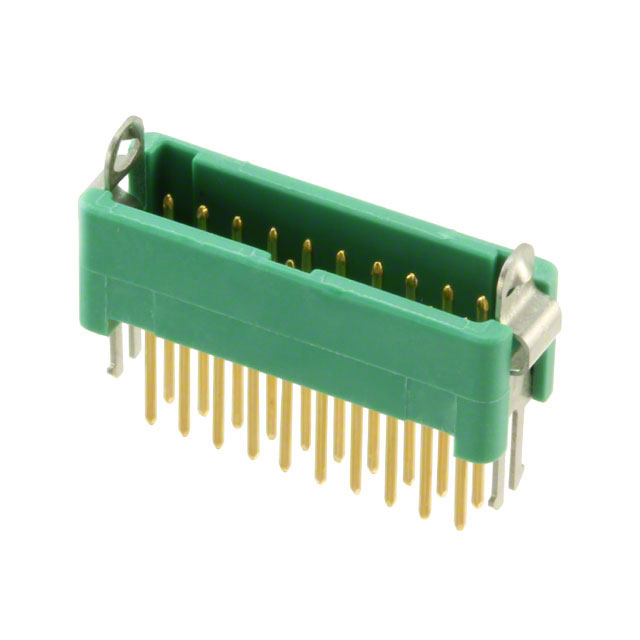

Description：CONN HEADER VERT 20POS 1.25MM
Series：Gecko
Mfr：Harwin Inc.
Package：Bulk

SKU:200027444ebb Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER VERT 20POS 1.25MM
Series：Gecko
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.049" (1.25mm)
Number of Positions：20
Number of Rows：2
Row Spacing - Mating：0.049" (1.25mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Latch Lock
Contact Length - Mating：-
Contact Length - Post：0.177" (4.50mm)
Overall Contact Length：-
Insulation Height：0.193" (4.90mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：8.00µin (0.203µm)
Contact Finish - Post：-
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features：Board Lock, Pick and Place
Operating Temperature：-65°C ~ 150°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Green
Current Rating (Amps)：2A per Contact
Voltage Rating：-

Download product information

G125-MV22005L2P

Overview

The Harwin G125-MV22005L2P is a Gecko-Latch series power-to-board connector designed for vertical through-hole mounting. It features a 12-position, 2-row male header with a 1.25 mm pitch and 1.25 mm row spacing. The contacts are gold-plated phosphor bronze rated for 2 A current and 250 V/450 V voltage. Operating temperature ranges from -65 °C to +150 °C, with an insulation resistance of 10 GOhms.

Feature Summary

Vertical through-board male pin configuration
Gecko-Latch mechanical locking system
Gold-plated phosphor bronze contacts
Polyamide (PA) housing material

Applications

Industrial control systems
Power distribution modules
Telecommunications equipment
Automotive electronics

Procurement Notes

Verify the specific suffix against the manufacturer datasheet to confirm contact plating thickness and housing color variants. Ensure the ordering part number matches the required reel quantity and tape specifications for automated assembly processes.

Selection Notes

Select this component when a secure latching mechanism is required for high-vibration environments. The 1.25 mm pitch allows for dense board layouts while maintaining robust power handling capabilities suitable for industrial applications.

Part Context

This part belongs to the Harwin Gecko-Latch family, which provides reliable interconnection solutions. It complements female sockets within the same series to form complete mating pairs for power and signal transmission in compact electronic assemblies.
