G125-MV22605L0P

Overview

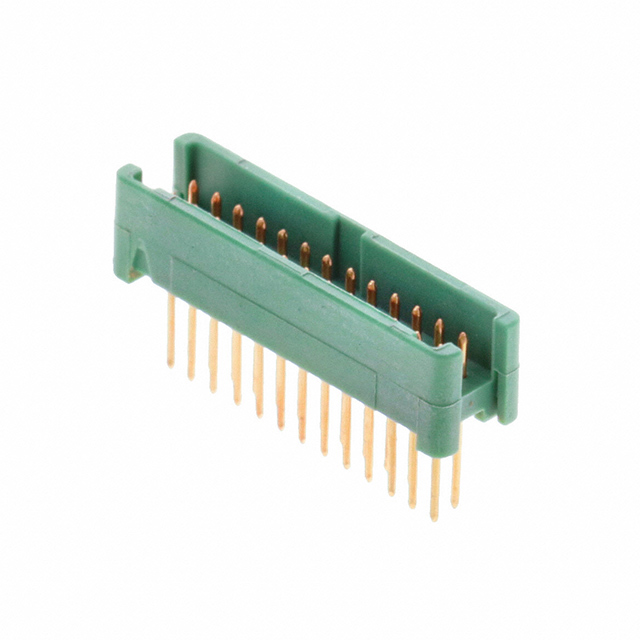

The G125-MV22605L0P is a vertical power-to-board header from the Harwin Gecko-Latch series. It features a 1.25 mm pitch and comprises 26 positions arranged in a dual-in-line, two-row configuration. The connector utilizes male pin contacts made of copper alloy with gold plating. Designed for through-hole solder termination, it supports a current rating of 2 A and voltage ratings up to 240 V. The housing is constructed from thermoplastic material, ensuring stability within an operating temperature range of -65 °C to +150 °C.

Feature Summary

• Integrates mechanical latching mechanisms for secure mating retention
• Employs gold-plated male pins for reliable electrical conductivity
• Features a vertical orientation suitable for direct board mounting

Applications

• Industrial control system interconnections
• Power distribution modules
• Embedded hardware infrastructure

Procurement Notes

Verify the specific suffix against official Harwin documentation to confirm latch presence and contact dimensions. Cross-reference RoHS compliance status directly with the manufacturer datasheet prior to integration. Ensure that the selected variant matches the required thermal and electrical specifications for the target application environment without deviation.

Selection Notes

Select this component when high-density power delivery requires robust mechanical retention via integrated latches. The 1.25 mm pitch allows for compact layouts while maintaining adequate spacing for safety isolation. Consider the 2 A current capacity and 240 V rating to ensure compatibility with the system's power requirements and environmental operating conditions.

Part Context

This part belongs to the Gecko-Latch sub-series within the broader Gecko connector family. It serves as a male header counterpart to female sockets, facilitating structured power-to-board connections. The design emphasizes durability and secure engagement in demanding electronic assemblies requiring stable physical and electrical interfaces.

Replacement Considerations

No public confirmed substitute part numbers are available.
