G2405CG

Overview

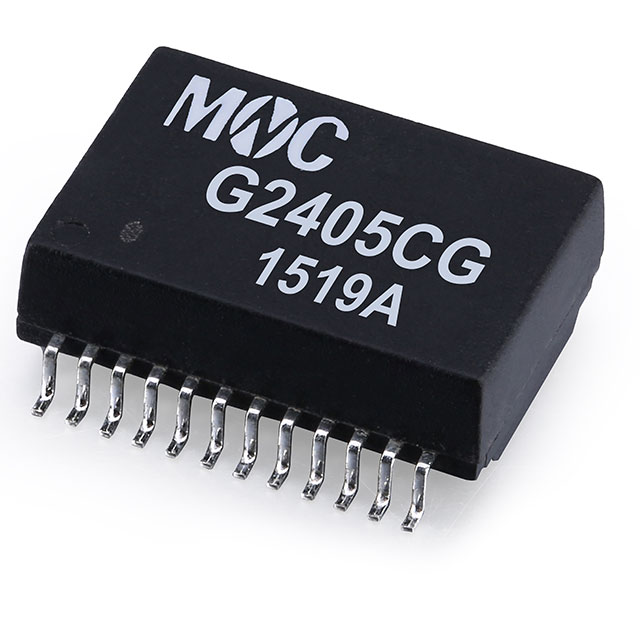

The G2405CG is a single-port surface mount pulse transformer designed for 10/100/1000 BASE-T Ethernet applications. It features a 1CT:1CT center-tapped winding configuration and provides 1.5kV isolation voltage. The component utilizes a SOP-24 package with 24 pins, supporting data transmission rates up to 1 Gbps. It operates within a commercial temperature range of 0°C to +70°C and does not support Power over Ethernet (PoE).

Feature Summary

• Supports 10/100/1000 BASE-T signaling standards
• Provides 1.5kV isolation capability
• Center-tapped 1CT:1CT winding structure

Applications

• Gigabit Ethernet network interfaces
• Computer motherboards
• Network switches and routers

Procurement Notes

Verify the specific datasheet version A0 or later when sourcing. Confirm the SOP-24 package dimensions match the PCB footprint. Ensure the operating temperature range meets the target environment requirements. Check for RoHS compliance status if required by project specifications.

Selection Notes

Select this component for single-port Gigabit Ethernet designs requiring surface mount integration. The 1.5kV isolation rating suits standard LAN applications. Verify that PoE functionality is not required, as this model lacks support for power delivery over the data lines.

Part Context

Mentech Technology USA Inc. manufactures this magnetic component for communication networks. The company produces various magnetics for access and backbone networks. This part fits into their portfolio of surface mount transformers for high-speed data transmission equipment.

Replacement Considerations

The G2401CG is a related single-port model from the same series. Verify pin compatibility and electrical parameters before substitution.
