Product Detailed Parameters
- Description：SINGLE LAN XFMR 1000 BASE-T
- Series：-
- Mfr：Mentech Technology USA Inc.
- Package：Tape & Reel (TR)
- Transformer Type：LAN 10/100/1000 Base-T, Power over Ethernet (PoE)
- Inductance：350µH
- ET (Volt-Time)：-
- Turns Ratio - Primary:Secondary：1CT:1CT
- Mounting Type：Surface Mount
- Size / Dimension：0.733" L x 0.500" W (18.00mm x 12.70mm)
- Height - Seated (Max)：0.266" (6.80mm)
- Operating Temperature：-40°C ~ 85°C
- Grade：-
- Qualification：-
Download product information
Overview

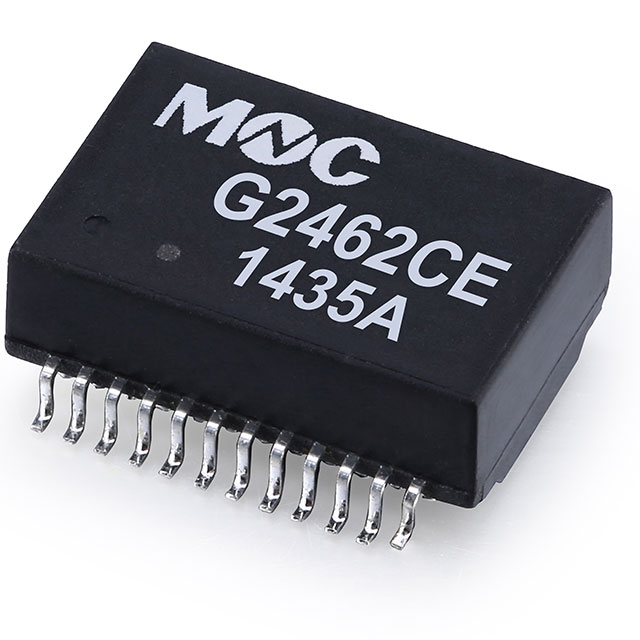

The G2462CE is a single-port Gigabit LAN transformer manufactured by Dongguan Mentech Optical & Magnetic. It supports 10/100/1000 BASE-T data rates and integrates Power over Ethernet (PoE) functionality with a current rating of 720mA. The component features a 350uH inductor, a turns ratio of 1CT:1CT, and a high potential isolation of 1.5kV. It operates within a temperature range of -40°C to 85°C and weighs 2.22g. Physical dimensions are 18.00mm x 12.70mm x 6.80mm.
Feature Summary
- Supports 10/100/1000 BASE-T high data rate transmission
- Integrates PoE capability for combined power and data delivery
- Provides 1.5kV HI-POT isolation for safety
Applications
- Gigabit Ethernet network interfaces
- PoE powered devices
- Network switches and routers
Procurement Notes
Verify the manufacturer origin as Dongguan Mentech Optical & Magnetic when sourcing this component. Confirm that the specific part number G2462CE matches the required 720mA PoE current rating and 1.5kV isolation specifications. Ensure compatibility with the 24-pin package configuration and the specified operating temperature range of -40°C to 85°C for your application environment.
Selection Notes
Select the G2462CE for applications requiring integrated Gigabit connectivity and Power over Ethernet support in a compact form factor. Consider its 720mA PoE current handling and 1.5kV isolation voltage when designing circuits that demand robust electrical separation and reliable data transmission speeds up to 1000 Mbps.
Part Context
Mentech Technology USA Inc. provides ODM, JDM, and EMS services, while the manufacturing entity is Dongguan Mentech Optical & Magnetic Co., Ltd. This company specializes in R&D and production of electronic components, including transformers and inductors, serving various communication technology solutions across different network environments.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation.
FAQ
What is the maximum data rate supported by the G2462CE?
The G2462CE supports 10/100/1000 BASE-T data rates.
Does the G2462CE support Power over Ethernet?
Yes, the G2462CE is equipped with PoE capabilities and supports a PoE current of 720mA.
