G2488CE

Overview

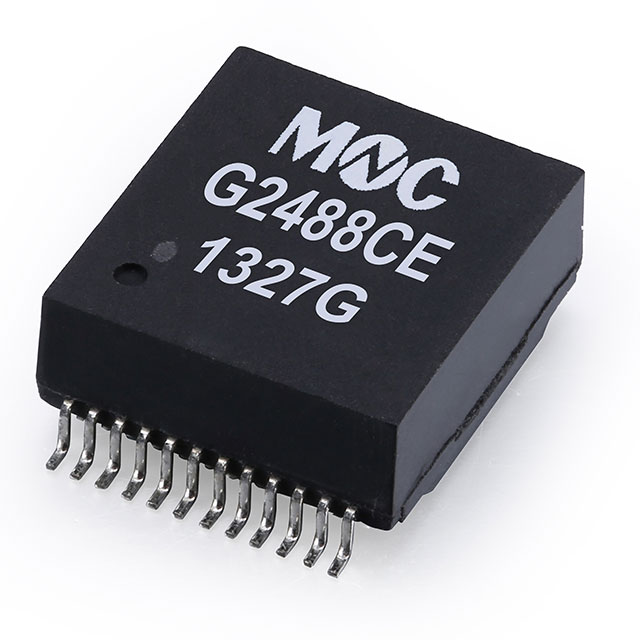

The G2488CE is a LAN pulse transformer manufactured by Mentech Technology USA Inc., designed for 10/100/1000 Base-T Ethernet applications. It features a 1CT:1CT configuration and utilizes a surface-mount device (SMD) package with dimensions of 15.8x14.2mm. The component has an inductance value of 350µH and weighs 1.60g. It is constructed for high-speed data transmission in network infrastructure.

Feature Summary

• Supports 10/100/1000 Base-T data rates
• Surface mount construction for automated assembly
• Integrated common mode choke functionality

Applications

• Ethernet switches
• Digital communication devices
• Network interface cards

Procurement Notes

Verify the specific datasheet version A0 issued on 2020/04/27 to ensure compliance with current design requirements. Confirm that the SMT package dimensions of 15.8x14.2mm match the target PCB footprint. Ensure the 1CT:1CT winding configuration aligns with the circuit topology before finalizing procurement orders.

Selection Notes

Select this component when a compact, surface-mount solution is required for Gigabit Ethernet ports. The 350µH inductance rating suits standard LAN isolation needs. Consider the physical weight of 1.60g for board stress analysis. Verify compatibility with existing magnetics footprints in multi-port switch designs.

Part Context

Mentech Technology USA Inc. produces this component as part of its magnetic元器件 portfolio. The company specializes in R&D and manufacturing of electronic components for communication networks. This transformer supports接入网 and主干网 equipment, reflecting the manufacturer's focus on high-reliability connectivity solutions.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Engineers must verify pinout and electrical equivalence manually if cross-referencing with other manufacturers' LAN transformers.
