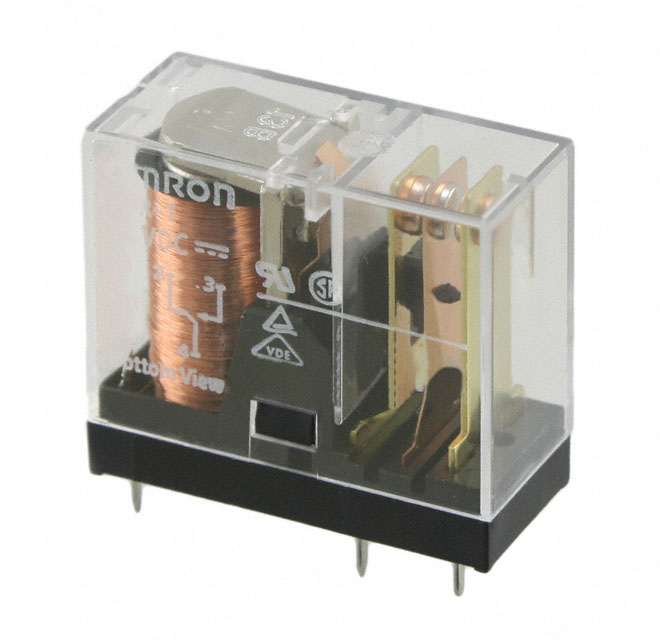

G2R-1-E DC24

G2R-1-E DC24 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is RELAY GEN PURPOSE SPDT 16A 24V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for G2R-1-E DC24

• Description：RELAY GEN PURPOSE SPDT 16A 24V
• Series：G2R
• Mfr：Omron Electronics Inc-EMC Div
• Package：Tray
• Mounting Type：Through Hole
• Coil Voltage：24VDC
• Contact Form：SPDT (1 Form C)
• Contact Rating (Current)：16 A
• Switching Voltage：380VAC, 125VDC - Max
• Load - Max Switching：6080VA, 2000W
• Coil Current：21.8 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：Sealed - Flux Protection
• Coil Insulation：-
• Must Operate Voltage：16.8 VDC
• Must Release Voltage：3.6 VDC
• Operating Temperature：-40°C ~ 70°C
• Contact Material：Silver Alloy
• Approval Agency：CSA, TUV, UR, VDE
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：15 ms
• Release Time：5 ms

Power Relays, Over 2 Amps datasheet and documents for G2R-1-E DC24
