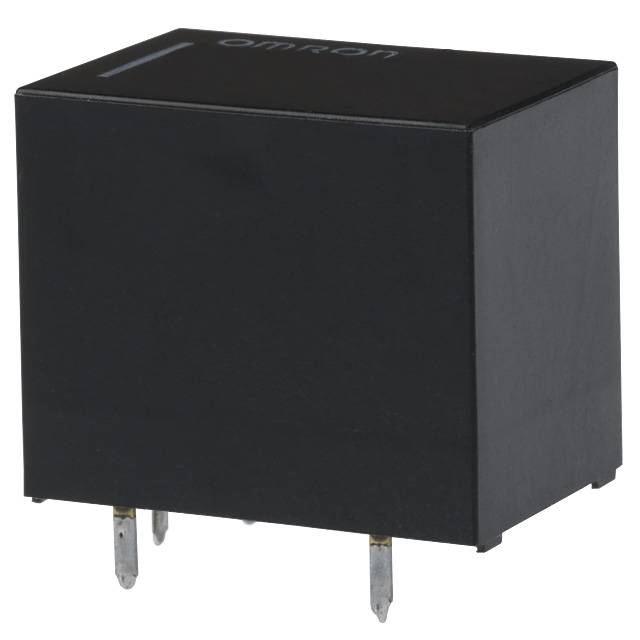

G5LE-14-36 DC5

G5LE-14-36 DC5 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is RELAY GEN PURPOSE SPDT 10A 5V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for G5LE-14-36 DC5

• Description：RELAY GEN PURPOSE SPDT 10A 5V
• Series：G5LE
• Mfr：Omron Electronics Inc-EMC Div
• Package：Tray
• Mounting Type：Through Hole
• Coil Voltage：5VDC
• Contact Form：SPDT (1 Form C)
• Contact Rating (Current)：10:00 AM
• Switching Voltage：250VAC, 125VDC - Max
• Load - Max Switching：-
• Coil Current：72 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：Sealed - Fully
• Coil Insulation：Class B
• Must Operate Voltage：3.75 VDC
• Must Release Voltage：0.5 VDC
• Operating Temperature：-25°C ~ 85°C
• Contact Material：Silver Tin Oxide (AgSnO)
• Approval Agency：CSA, TUV, UR, VDE
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：10 ms
• Release Time：5 ms

Power Relays, Over 2 Amps datasheet and documents for G5LE-14-36 DC5
