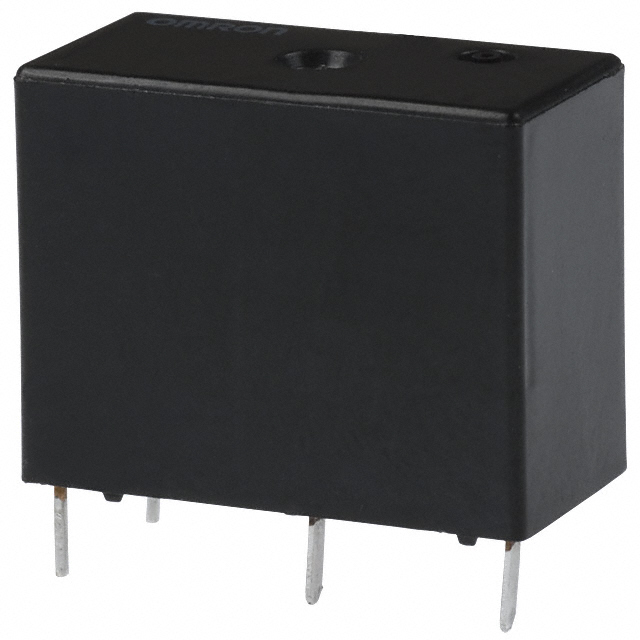

G5Q-1A DC12

G5Q-1A DC12 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is RELAY GEN PURPOSE SPST 10A 12V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for G5Q-1A DC12

• Description：RELAY GEN PURPOSE SPST 10A 12V
• Series：G5Q
• Mfr：Omron Electronics Inc-EMC Div
• Package：Tray
• Mounting Type：Through Hole
• Coil Voltage：12VDC
• Contact Form：SPST-NO (1 Form A)
• Contact Rating (Current)：10:00 AM
• Switching Voltage：277VAC, 30VDC - Max
• Load - Max Switching：2770VA, 300 W
• Coil Current：16.7 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：Sealed - Flux Protection
• Coil Insulation：Class F
• Must Operate Voltage：9 VDC
• Must Release Voltage：0.6 VDC
• Operating Temperature：-40°C ~ 105°C
• Contact Material：Silver Alloy
• Approval Agency：CQC, CSA, UR, VDE
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：10 ms
• Release Time：5 ms

Power Relays, Over 2 Amps datasheet and documents for G5Q-1A DC12
