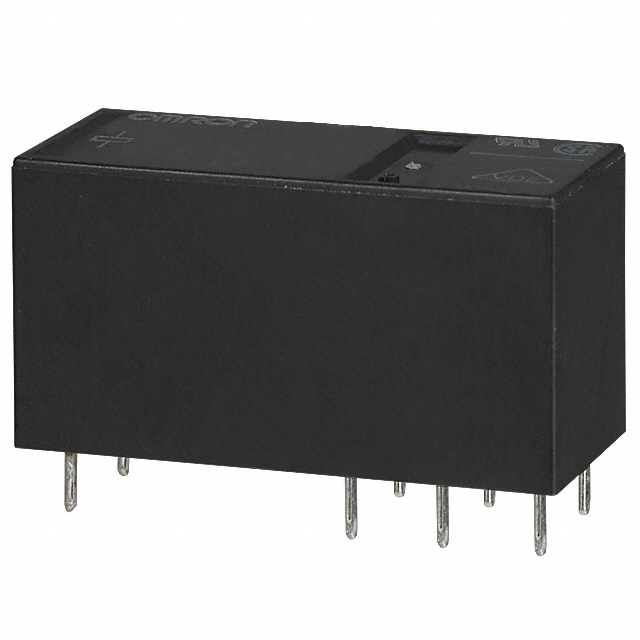

G5RL-1-E-HR DC5

G5RL-1-E-HR DC5 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is RELAY GEN PURPOSE SPDT 16A 5V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for G5RL-1-E-HR DC5

• Description：RELAY GEN PURPOSE SPDT 16A 5V
• Series：G5RL
• Mfr：Omron Electronics Inc-EMC Div
• Package：Bulk
• Mounting Type：Through Hole
• Coil Voltage：5VDC
• Contact Form：SPDT (1 Form C)
• Contact Rating (Current)：16 A
• Switching Voltage：250VAC, 24VDC - Max
• Load - Max Switching：4000VA, 384W
• Coil Current：80 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：Sealed - Flux Protection
• Coil Insulation：-
• Must Operate Voltage：3.5 VDC
• Must Release Voltage：0.5 VDC
• Operating Temperature：-40°C ~ 85°C
• Contact Material：Silver Alloy
• Approval Agency：CQC, CSA, cURus, UR, VDE
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：15 ms
• Release Time：5 ms

Power Relays, Over 2 Amps datasheet and documents for G5RL-1-E-HR DC5
