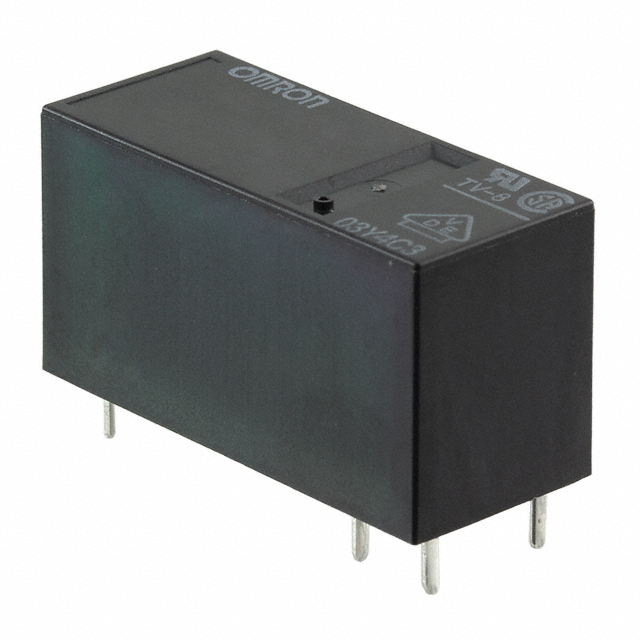

G5RL-U1A-E DC12

G5RL-U1A-E DC12 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is RELAY GEN PURPOSE SPST 16A 12V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for G5RL-U1A-E DC12

• Description：RELAY GEN PURPOSE SPST 16A 12V
• Series：G5RL-U
• Mfr：Omron Electronics Inc-EMC Div
• Package：Tray
• Mounting Type：Through Hole
• Coil Voltage：12VDC
• Contact Form：SPST-NO (1 Form A)
• Contact Rating (Current)：16 A
• Switching Voltage：250VAC, 24VDC - Max
• Load - Max Switching：4000VA, 384W
• Coil Current：50 mA
• Coil Type：Latching, Single Coil
• Features：-
• Termination Style：PC Pin
• Seal Rating：Sealed - Flux Protection
• Coil Insulation：-
• Must Operate Voltage：8.4 VDC
• Must Release Voltage：-
• Operating Temperature：-40°C ~ 85°C
• Contact Material：Silver Alloy, Cadmium Free
• Approval Agency：CQC, CSA, cURus, UR, VDE
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：15 ms
• Release Time：15 ms

Power Relays, Over 2 Amps datasheet and documents for G5RL-U1A-E DC12
