G630H9812248EU

Edgeboard Connectors Overview

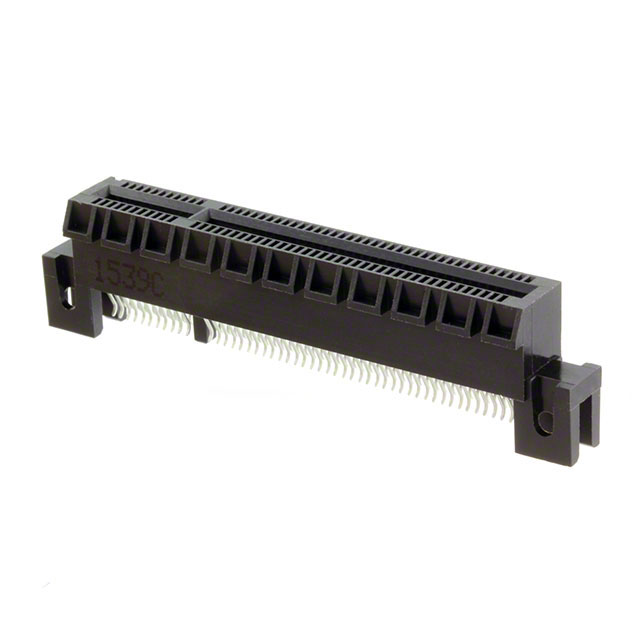

The G630H9812248EU is a PCI Express card edge connector manufactured by Amphenol ICC (FCI). It features 98 positions with a 0.039 inch (1.00mm) pitch. The component utilizes surface mount termination and is designed for straddle mount installation on the board edge. Contact surfaces are finished with gold plating to ensure reliable signal transmission. The housing is constructed from black thermoplastic material, providing structural integrity and insulation for high-density interconnect applications in electronic systems.

Edgeboard Connectors Feature Summary

• Supports high-speed data transmission via PCI Express interface standards
• Utilizes straddle mount configuration for secure board edge integration
• Features gold-plated contacts for enhanced conductivity and corrosion resistance

Edgeboard Connectors Applications

• High-performance computing server backplanes
• Telecommunications infrastructure equipment
• Industrial control system motherboards

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official manufacturer documentation to confirm exact mechanical dimensions and contact finish specifications. Ensure compatibility with mating card edge thicknesses and PCB stack-up requirements before finalizing procurement orders to prevent assembly mismatches.

Edgeboard Connectors Selection Notes

Select this component when a low-profile, high-density connection is required for PCI Express generation 3.0 or later applications. Consider the straddle mount style for improved mechanical stability compared to standard edge mount options. Evaluate thermal management needs as the compact form factor may influence heat dissipation strategies within the enclosure.

Edgeboard Connectors Part Context

This part belongs to the PCIe Gen3 V/T Straddle Mount series, designed for next-generation high-speed data transfer. It complements other Amphenol FCI connectors by offering a robust solution for dense I/O configurations. The series supports evolving bandwidth demands while maintaining backward compatibility with earlier PCI Express standards in enterprise environments.

Edgeboard Connectors Replacement Considerations

Consult official cross-reference guides for direct substitutes. Verify that alternative parts match the 98-position count, 1.00mm pitch, and straddle mount footprint to ensure mechanical and electrical interchangeability without redesigning the host PCB layout.
