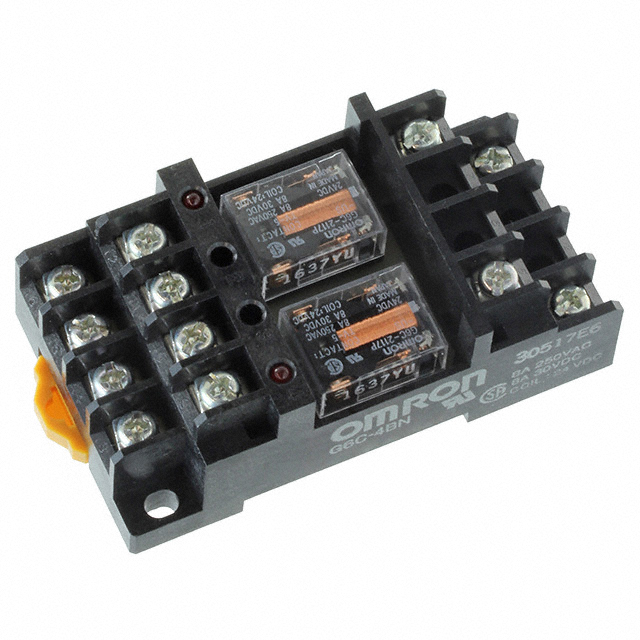

G6C-4BND DC5

G6C-4BND DC5 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is RELAY GEN PURPOSE DPST 8A 5V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for G6C-4BND DC5

• Description：RELAY GEN PURPOSE DPST 8A 5V
• Series：G6C-4
• Mfr：Omron Electronics Inc-EMC Div
• Package：Bulk
• Mounting Type：DIN Rail
• Coil Voltage：5VDC
• Contact Form：DPST-NO/NC (1 Form A, 1 Form B) x 2
• Contact Rating (Current)：8:00 AM
• Switching Voltage：380VAC, 125VDC - Max
• Load - Max Switching：3040VA, 1000W
• Coil Current：40 mA
• Coil Type：Non Latching
• Features：Socket Included
• Termination Style：Screw Terminal
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：3.5 VDC
• Must Release Voltage：0.5 VDC
• Operating Temperature：-25°C ~ 55°C
• Contact Material：-
• Approval Agency：CSA, TUV, UR, VDE
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：10 ms
• Release Time：15 ms

Power Relays, Over 2 Amps datasheet and documents for G6C-4BND DC5
