G6FT2G017G2YA-J

Overview

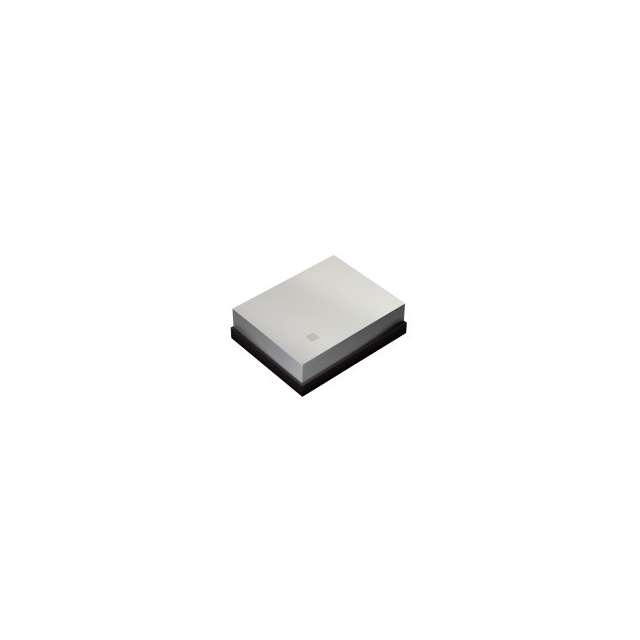

The G6FT2G017G2YA-J is a Surface Acoustic Wave (SAW) dual filter manufactured by Taiyo Yuden, designed for mobile communication applications. It operates at a center frequency of 2.017 GHz and supports TD-LTE Band 34 and TD-SCDMA Band 39 standards. The device features a compact 10-pin SMD package with dimensions of 1.5 mm x 1.0 mm x 0.44 mm. Electrical specifications include insertion losses of 1.3 dB and 1.4 dB for its respective paths. It functions as a TRx dual-type filter, offering high isolation and low loss to enhance signal quality in high-speed data transmission environments.

Feature Summary

• Provides superior filtering and frequency utilization efficiency for high-speed data transmission
• Features high isolation characteristics to improve signal integrity
• Utilizes a compact and low-profile surface mount design to minimize board space

Applications

• TD-LTE Band 34 systems
• TD-SCDMA Band 39 networks
• Mobile communication devices requiring TRx dual-frequency support

Procurement Notes

Verify the specific ordering suffix against official Taiyo Yuden documentation to ensure correct pinout and electrical characteristics. Confirm that the component meets the required environmental temperature ratings for your specific application environment. Cross-reference the manufacturer part number with authorized distributors to avoid counterfeit components. Ensure compatibility with your PCB footprint and reflow soldering profile requirements before finalizing procurement decisions.

Selection Notes

Select this component when designing for TD-LTE Band 34 or TD-SCDMA Band 39 applications requiring a dual-filter solution. The 1.5 mm x 1.0 mm package size is suitable for space-constrained mobile devices. Consider the 1.3 dB and 1.4 dB insertion loss values when calculating system link budgets. Ensure the design accommodates the 10-pin SMD no-lead termination style for proper thermal and mechanical performance.

Part Context

This part belongs to Taiyo Yuden's SAW RF Filter series, which includes various dual and triple filters for CDMA, LTE, and GPS applications. The series is characterized by small form factors and wide operating temperature ranges from -35°C to +85°C. Other similar parts in the lineup include G6QN2G140M2RN-J for W-CDMA/LTE and F6FC1G197H4PF-J for GPS, sharing common packaging technologies and reliability standards.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Verify if any alternative models within the same family offer compatible electrical parameters and pin configurations before considering substitution.
