G6QN2G595M2RP-J

Overview

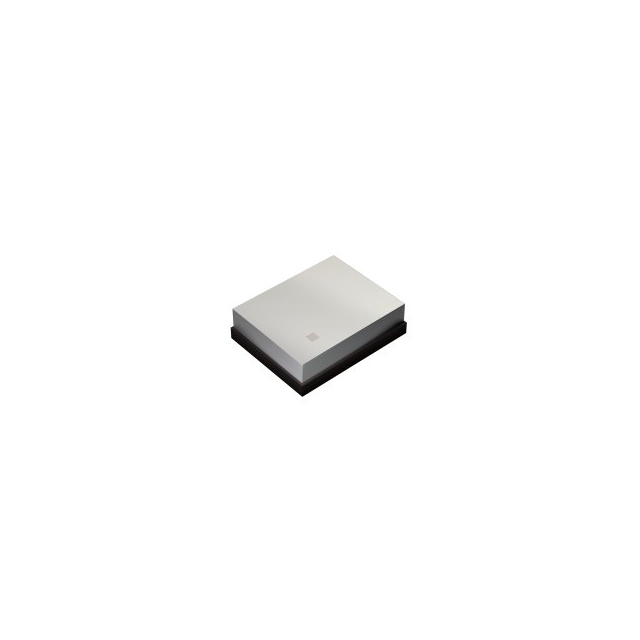

The G6QN2G595M2RP-J is a Surface Mount Device (SMD) SAW Dual Filter manufactured by Taiyo Yuden. It operates within the 1 GHz to 5 GHz frequency range with a nominal impedance of 50 Ohms. The component features an insertion loss of 2.3 dB and functions reliably between -30°C and +85°C. Its physical dimensions are 1.5 mm x 1.1 mm x 0.5 mm, utilizing SMD/SMT termination for board mounting.

Feature Summary

• Dual filter configuration designed for signal conditioning applications
• Surface mount technology compatible with automated assembly processes
• Robust thermal performance across extended industrial temperature ranges

Applications

• Band 41 / Band 39 receiver dual filtering
• Wireless communication module signal processing
• RF front-end circuit integration

Procurement Notes

Verify current lifecycle status as distribution channels may indicate end-of-life or limited availability. Confirm RoHS compliance details through official manufacturer documentation before procurement. Ensure packaging format requirements align with production line capabilities, noting that factory quantities typically start at 5000 units.

Selection Notes

Select this component when a compact 1.5x1.1mm footprint is required for high-frequency dual filtering. Verify that the 50 Ohm impedance matches system design specifications. Consider the -30°C to +85°C operating range against environmental conditions. Check for suggested alternates like FSGCSR5T2G59M2RP-AJ if supply constraints exist.

Part Context

This part belongs to the G6 series of SAW filters from Taiyo Yuden. It serves as a specialized signal conditioning element for RF applications requiring precise frequency selection in the 1-5 GHz band. The device integrates dual filter functionality into a small surface-mount package suitable for modern electronic miniaturization trends.

Replacement Considerations

Publicly documented alternate part number: FSGCSR5T2G59M2RP-AJ. Verify pinout compatibility and electrical parameter equivalence before substitution.
