G874D061202CEU

Headers, Male Pins Overview

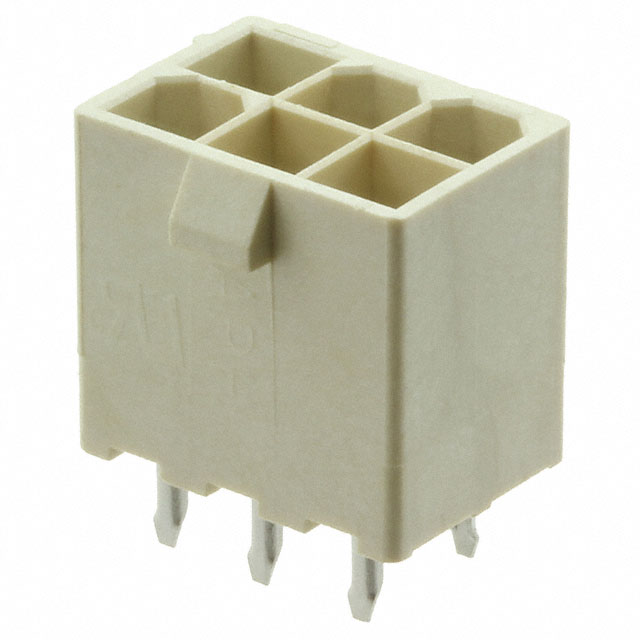

The G874D061202CEU is a vertical header connector from the MiniPwrV/T series by Amphenol ICC. It features six positions with a 0.165-inch (4.20mm) pitch, designed for through-hole mounting on printed circuit boards. The connector utilizes square contact shapes and includes board lock features for secure installation. Insulation is constructed from high-temperature resistant materials suitable for demanding environments.

Headers, Male Pins Feature Summary

• Vertical pin arrangement for direct PCB insertion
• Board lock mechanism ensures mechanical stability
• Tin-plated contacts for reliable conductivity
• High-temperature insulation material construction

Headers, Male Pins Applications

• Power distribution in industrial control systems
• Server and data center power connections
• Time-sensitive networking hardware interfaces
• Miniature power supply unit interconnects

Headers, Male Pins Procurement Notes

Verify that the specific suffix matches the required tin plating thickness and temperature rating. Confirm the absence of posts if the application requires a flush surface. Ensure the supplier provides official datasheets to validate the 4.20mm pitch and through-hole termination specifications against design requirements.

Headers, Male Pins Selection Notes

Select this component when a low-profile, high-current vertical header is needed. The 4.20mm spacing accommodates thicker power traces. Consider the operating temperature range and UL94 V-0 flammability rating for safety compliance. Verify compatibility with mating power blades or pins regarding contact geometry and current capacity.

Headers, Male Pins Part Context

This part belongs to the MiniPwrV/T family, optimized for high-temperature applications. It serves as a robust interface between power sources and circuit boards. The series is commonly utilized in infrastructure equipment requiring reliable electrical connections under thermal stress.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include G874D121202CEU for twelve positions. Cross-referencing requires matching the 4.20mm pitch and vertical orientation. Ensure any alternative maintains the same board lock and tin plating specifications.
