G88MP24102KEU

Headers, Male Pins Overview

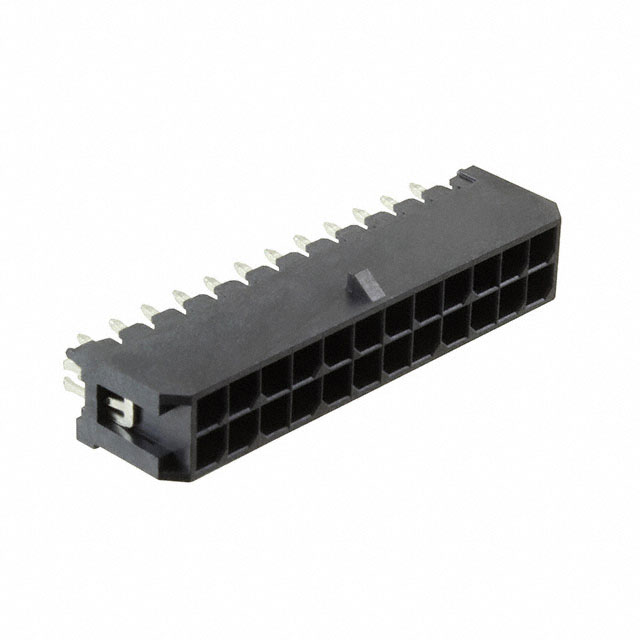

The G88MP24102KEU is a vertical pin header connector from the Micro Power Plus series, manufactured by Amphenol ICC. It features 24 positions arranged in a dual-row configuration with a 3.00mm (0.118 inch) pitch. The housing is constructed from black Liquid Crystal Polymer (LCP), providing high thermal stability and flame resistance rated UL94 V-0. Contacts are made of copper alloy with tin plating for reliable conductivity. Designed for through-hole mounting, it supports board lock installation to ensure secure attachment. The component operates within a temperature range of -40°C to 105°C and carries RoHS3 compliance.

Headers, Male Pins Feature Summary

• High-density dual-row design optimized for compact power-dense applications
• Liquid Crystal Polymer (LCP) housing ensures superior thermal performance and UL94 V-0 flammability rating
• Board lock mechanism provides secure mechanical retention during operation
• Tin-plated copper alloy contacts offer durable electrical connectivity

Headers, Male Pins Applications

• Data center server infrastructure interconnects
• Time-sensitive networking equipment connections
• Compact power distribution modules
• Industrial control system backplanes

Headers, Male Pins Procurement Notes

Verify that the specific suffix KEU matches the required packaging and material specifications for your assembly process. Confirm that the 3.00mm pitch and 24-position count align precisely with the target PCB footprint. Ensure compatibility with through-hole soldering profiles suitable for LCP materials. Cross-reference the UL94 V-0 rating against safety requirements for the final enclosure environment.

Headers, Male Pins Selection Notes

Select this component when high current density and thermal resilience are critical for board-to-board or cable-to-board links. The Micro Power Plus series offers robust contact retention compared to standard headers. Consider the 3.00mm spacing for adequate creepage distances in higher voltage scenarios. Evaluate the board lock feature if vibration resistance is a primary design constraint for the application environment.

Headers, Male Pins Part Context

This part belongs to the Micro Power Plus family, designed for high-reliability power delivery in space-constrained electronics. The series emphasizes compact form factors without sacrificing electrical performance. It complements other connectors in the Amphenol commercial portfolio used in demanding computing and industrial sectors. The G88MP designation indicates a male pin header variant within this specialized power connector line.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other 24-position, 3.00mm pitch headers from Amphenol ICC such as the G881A series, provided they match the LCP material and board lock requirements. Verify that alternative parts maintain the same UL94 V-0 rating and operating temperature range to ensure equivalent thermal and safety performance in the final assembly.
