GA.130.201111

Antennas RF Overview

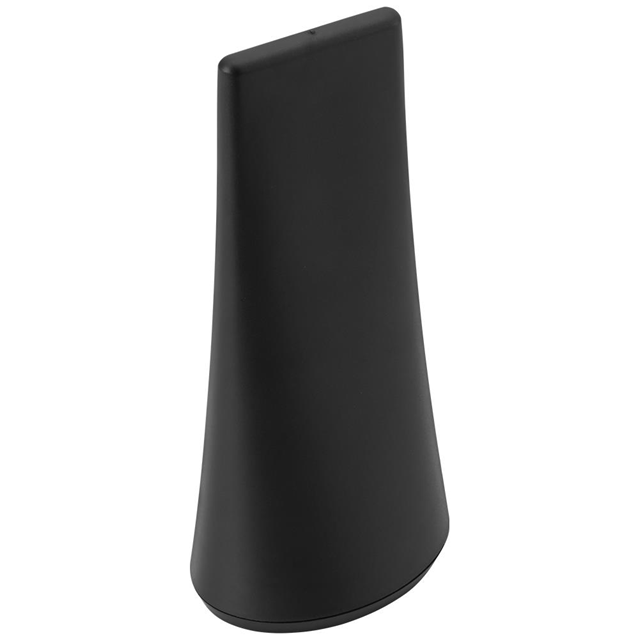

The GA.130.201111 is a Shanghai series magnetic mount LTE antenna by Taoglas Limited, designed for broad cellular coverage. It operates within the 698MHz to 2700MHz frequency range, supporting multiple bands including LTE, DCS, GSM, PCS, and UMTS. The unit features an omni-directional radiation pattern with an SMA male connector for secure attachment. Constructed for durability, it utilizes adhesive backing for installation on ferrous surfaces. This module integrates robust environmental sealing to maintain signal integrity in outdoor or mobile applications requiring reliable wideband transmission.

Antennas RF Feature Summary

• Omni-directional radiation pattern ensures consistent signal reception across all azimuth angles
• Magnetic mounting base allows for rapid, tool-free installation on metal surfaces
• Wideband frequency operation supports diverse cellular standards from 698MHz to 2700MHz
• Integrated adhesive backing provides permanent alternative mounting option

Antennas RF Applications

• LTE vehicle telemetry systems
• Mobile data terminal installations
• IoT gateway connectivity
• Public safety radio communications

Antennas RF Procurement Notes

Verify that the target application surface is ferromagnetic to ensure adequate magnetic holding force. Confirm that the SMA male connector interface matches the receiving equipment port. Check environmental requirements against the product's sealing specifications. Ensure cable routing does not obstruct the magnetic field interaction. Validate regulatory compliance for the specific deployment region before final procurement.

Antennas RF Selection Notes

Select this model when wideband coverage spanning lower LTE bands through upper PCS/UMTS frequencies is required. The magnetic form factor suits temporary or semi-permanent mounts where drilling is prohibited. Compare gain characteristics against competing whip antennas if high directivity is needed. Consider the physical footprint constraints relative to the mounting location. Verify connector polarity compatibility with existing RF infrastructure components.

Antennas RF Part Context

This component belongs to the Shanghai series of antennas, which are engineered for rugged mobile and fixed wireless environments. The series emphasizes ease of deployment through magnetic and adhesive options. It complements Taoglas' portfolio of cellular solutions by providing a versatile wideband option for operators needing unified hardware for multiple network generations without swapping antennas.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with other Shanghai series models if specific frequency band exclusions are required. Consult manufacturer resources for updated equivalents if discontinuation occurs.
