Product Detailed Parameters
- Description：BRIDGE RECT 1PHASE 1KV 35A GBJL
- Series：-
- Mfr：MCC (Micro Commercial Components)
- Package：Bulk
- Diode Type：Single Phase
- Technology：Standard
- Voltage - Peak Reverse (Max)：1 kV
- Current - Average Rectified (Io)：35 A
- Voltage - Forward (Vf) (Max) @ If：1.05 V @ 17.5 A
- Current - Reverse Leakage @ Vr：10 µA @ 1000 V
- Operating Temperature：-55°C ~ 150°C (TJ)
- Mounting Type：Through Hole
- Package / Case：4-SIP, GBJL
- Supplier Device Package：GBJL
- Grade：-
- Qualification：-
Download product information
Overview

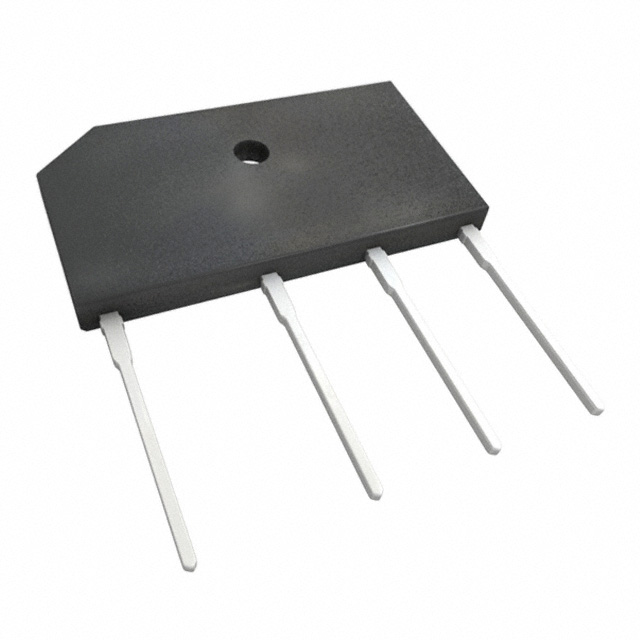

The GBJL3510-BP is a single-phase bridge rectifier manufactured by Micro Commercial Components (MCC). It features glass passivated chip junctions and operates within an ambient temperature range of -55°C to +150°C. The device provides a maximum repetitive peak reverse voltage of 1000V and supports an average forward current of 35A at a case temperature of 100°C. Key electrical characteristics include a maximum instantaneous forward voltage of 1.05V, a maximum DC reverse current of 10µA at 25°C, and a typical junction capacitance of 85pF measured at 1.0MHz. The component utilizes a molded plastic case with solderable terminals.
Feature Summary
- Glass passivated chip junction construction for reliable operation
- Low forward voltage drop combined with high current capability
- Epoxy material meets UL 94 V-0 flammability rating
Applications
- Printed circuit board mounting applications
- General purpose rectification in power supplies
- Industrial equipment requiring high surge current handling
Procurement Notes
Verify the specific ordering suffix when purchasing components. The standard bulk packaging designation is BP. Halogen-free variants are available upon request by adding the HF suffix to the part number. Ensure procurement channels are authorized distributors to guarantee genuine parts with full traceability and compliance with MCC quality standards.
Selection Notes
Select this component for circuits requiring 1000V blocking voltage and 35A continuous current capacity. Consider the thermal resistance of 0.6°C/W and derating curves for heatsink requirements. Verify terminal dimensions against PCB layout constraints before integration into the design.
Part Context
This model belongs to the GBJL series of silicon bridge rectifiers from Micro Commercial Components. The series covers voltage ratings from 50V to 1000V while maintaining a consistent 35A current rating across all variants. The GBJL3510 represents the highest voltage option in this specific package configuration.
Replacement Considerations
Direct replacements must match the 35A current rating, 1000V reverse voltage, and GBJL physical footprint. Verify that alternative manufacturers offer identical pinout configurations and comparable thermal performance metrics.
FAQ
What is the maximum non-repetitive surge current rating?
The peak forward surge current is rated at 350A for an 8.3ms half-sine wave pulse.
How does the device handle high-temperature soldering?
High-temperature soldering exemption is applied per EU Directive Annex Notes, allowing terminals to withstand soldering temperatures up to 260°C for 10 seconds.
Is the component compliant with RoHS standards?
Yes, the lead-free finish is RoHS compliant, indicated by the BP suffix in the ordering information.
