GBL410_T0_00601

Overview

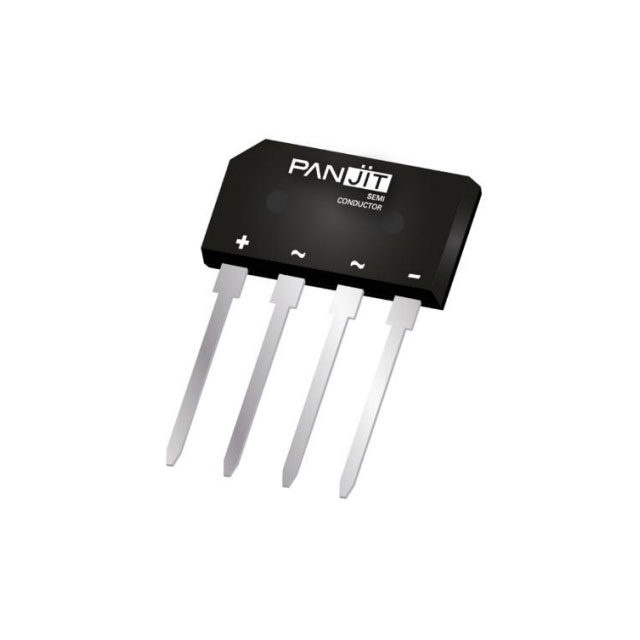

The GBL410 is a glass passivated single-phase bridge rectifier manufactured by Panjit International Inc. It features a maximum repetitive peak reverse voltage of 1000 V and a maximum average forward current of 4 A at 25 °C with a heatsink, or 2.1 A without one. The device utilizes a GBL-2 package and supports a peak forward surge current of up to 280 A for 1.0 ms pulses. Electrical characteristics include a maximum forward voltage of 1.05 V at 2 A and a maximum reverse leakage current of 5 µA at 25 °C. The component operates within a junction temperature range of -55 °C to 150 °C.

Feature Summary

• Glass passivation provides mechanical strength and protects against mechanical stresses
• Compliant with EU RoHS 2.0 standards and IEC 61249 halogen-free requirements
• UL recognized under file number E526209

Applications

• Computing power supplies
• Consumer power adapters
• Game console power systems
• Monitor power circuits
• Slim adapter designs

Procurement Notes

Verify the specific ordering suffix matches the required packaging configuration before purchase. Confirm that the component version aligns with the latest datasheet revision to ensure accurate electrical parameters. Check for compliance documentation regarding RoHS 2.0 and halogen-free status if required by your manufacturing standards. Ensure the supplier provides valid lot numbers for traceability purposes.

Selection Notes

Select this component when a 1000 V rating and 4 A continuous current capability are required in a compact surface-mount form factor. Consider thermal management strategies as the rated current drops significantly without an attached heatsink. Evaluate the peak surge current limits against potential inrush currents in the target circuit design to ensure reliable operation during startup conditions.

Part Context

This part belongs to the GBL series of bridge rectifiers from Panjit International Inc., designed for general-purpose AC-to-DC conversion applications. The GBL-2 package offers a compact footprint suitable for space-constrained printed circuit boards. It serves as a standard solution for low to medium power supply units in consumer electronics and computing hardware sectors.

Replacement Considerations

Direct substitutes must match the 1000 V reverse voltage, 4 A forward current, and GBL-2 package dimensions. Verify equivalent forward voltage drop and reverse leakage specifications to maintain circuit performance. Ensure any replacement component holds similar safety certifications such as UL recognition.
