GBM06DSEN

Edgeboard Connectors Overview

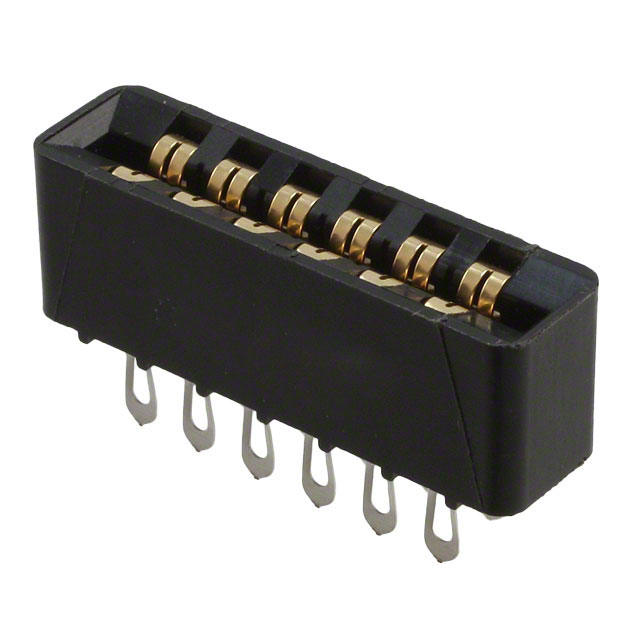

The GBM06DSEN is a dual-row female card edge connector manufactured by Sullins Connector Solutions. It features 12 positions arranged in two rows of six, with a 0.156-inch (3.96mm) spacing. The connector utilizes phosphor bronze contacts with a tin plating thickness of 100.0µin (2.54µm). Designed for through-hole mounting, it accommodates board thicknesses of 0.062 inches (1.57mm). The insulating material is polyamide (PA9T), nylon 9T, colored black. It operates within a temperature range of -65°C to 125°C and complies with RoHS3 standards.

Edgeboard Connectors Feature Summary

• Dual-row configuration with full bellows contact type for secure mating
• Through-hole termination method ensuring stable PCB attachment
• Tin-plated phosphor bronze contacts for corrosion resistance
• Polyamide insulation providing thermal stability up to 125°C

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Consumer electronics internal module connections

Edgeboard Connectors Procurement Notes

Verify the specific suffix against official Sullins documentation to confirm contact plating and termination style. Ensure the selected variant matches the required board thickness and mounting orientation. Confirm RoHS3 compliance status if environmental regulations apply to the end product. Cross-reference the DigiKey part number GBM06DSEN-ND for accurate sourcing details.

Edgeboard Connectors Selection Notes

Choose this component when a dual-row female interface is required for 0.156-inch spaced boards. The tin plating offers cost-effective conductivity suitable for general applications. Verify that the through-hole installation method aligns with the assembly process. Consider the operating temperature range to ensure reliability under expected environmental conditions.

Edgeboard Connectors Part Context

This connector belongs to the GBM06 series from Sullins Connector Solutions, designed for edgeboard applications. It provides a reliable connection between circuit boards and peripheral modules. The series supports various termination and plating options to meet diverse manufacturing needs while maintaining consistent mechanical dimensions.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include GSM06DSUS and GBM06DTBS, provided they match the 12-position dual-row specification and 0.156-inch spacing. Verify that alternative parts support the same through-hole mounting and board thickness requirements before integration.
