GBO25-16NO1

Overview

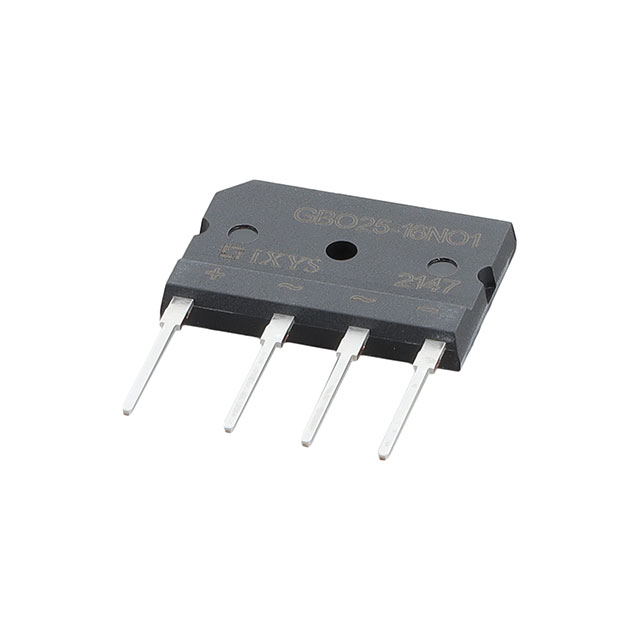

The IXYS GBO25-16NO1 is a standard rectifier diode module featuring planar passivated chips and an epoxy casing compliant with UL 94V-0 standards. It offers a repetitive peak reverse voltage (VRRM) of 1600 V and supports a maximum average forward current of 25 A at 80°C case temperature. The device exhibits a low forward voltage drop, characterized by a threshold voltage of 0.89 V and a slope resistance of 12.2 mΩ. Designed for robust thermal performance, it provides a junction-to-case thermal resistance of 4.3 K/W per diode. The component utilizes a compact surface-mount package to facilitate easy mounting via a single screw.

Feature Summary

• Planar passivated chip technology ensures stable electrical characteristics
• Low forward voltage drop contributes to improved efficiency
• Epoxy encapsulation meets UL 94V-0 flammability requirements

Applications

• Supplies for DC power equipment
• Input rectifiers for PWM inverters
• Battery DC power supplies
• Field supply for DC motors

Procurement Notes

Verify the specific ordering suffix NO1 against official IXYS documentation to confirm pinout configuration and packaging details. Ensure that the requested quantity aligns with manufacturer distribution channels. Confirm compliance with RoHS directives if required for the target application environment. Cross-reference datasheet revision dates to ensure access to the most recent technical specifications and mechanical drawings.

Selection Notes

Select this component when high voltage blocking capability up to 1600 V is required in a compact form factor. Evaluate the thermal management strategy based on the specified junction-to-case resistance of 4.3 K/W. Consider the 25 A average current rating relative to the expected operating temperature and heatsink capabilities. Verify that the forward voltage characteristics meet the efficiency targets of the rectification circuit design.

Part Context

This part belongs to the GBO series of standard rectifier modules manufactured by IXYS. The series is designed for general-purpose rectification applications requiring reliable performance under high voltage conditions. The GBO25-16NO1 variant specifically addresses needs for 1600 V blocking voltage within a space-constrained design environment suitable for industrial power electronics.

Replacement Considerations

Consult official IXYS substitution guides or distributor cross-reference tools for verified equivalent parts. Ensure any replacement maintains compatibility with the 1600 V rating and 25 A current capacity. Verify that alternative components match the physical dimensions and mounting torque specifications to fit existing board layouts.

FAQ

What is the maximum allowable mounting torque for the M3 screw?

The maximum allowable mounting torque for the M3 screw is specified as 0.5 to 0.8 Nm.

How does the average forward current rating change with case temperature?

The average forward current rating is 25 A at a case temperature of 80°C and reduces to 5 A at a case temperature of 25°C without a heatsink.

What is the typical weight of the GBO25-16NO1 module?

The typical weight of the module is approximately 7 grams.
