Product Detailed Parameters
- Description：BRIDGE RECT 1PHASE 200V 2A GBPC1
- Series：-
- Mfr：Vishay General Semiconductor - Diodes Division
- Package：Box
- Diode Type：Single Phase
- Technology：Standard
- Voltage - Peak Reverse (Max)：200 V
- Current - Average Rectified (Io)：2:00 AM
- Voltage - Forward (Vf) (Max) @ If：1 V @ 1.5 A
- Current - Reverse Leakage @ Vr：5 µA @ 200 V
- Operating Temperature：-55°C ~ 150°C (TJ)
- Mounting Type：Through Hole
- Package / Case：4-Square, GBPC-1
- Supplier Device Package：GBPC1
Download product information
Overview

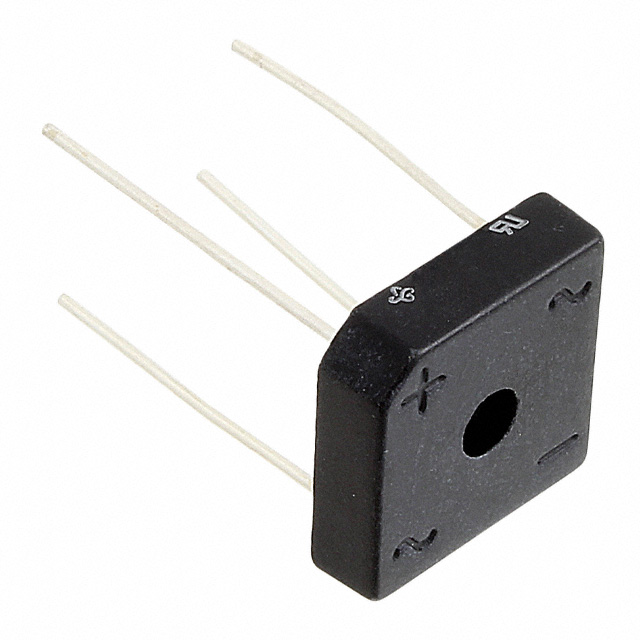

The GBPC102-E4/51 is a glass passivated single-phase bridge rectifier manufactured by Vishay General Semiconductor. It features a GBPC1 case style with through-hole solder pin mounting. The component supports a maximum repetitive peak reverse voltage of 200 V and delivers a maximum average forward rectified output current of 3.0 A at a case temperature of 60 °C. It withstands a peak forward surge current of 60 A. Electrical characteristics include a maximum instantaneous forward voltage drop of 1.0 V at 1.5 A, a maximum DC reverse current of 5 μA at rated voltage, and a typical junction capacitance of 21 pF. Operating temperatures range from -55 °C to +150 °C.
Feature Summary
- Glass passivation provides mechanical strength and meets UL 94 V-0 flammability ratings for the molding compound.
- Silver-plated leads ensure solderability per J-STD-002 and JESD22-B102 standards.
- High case dielectric strength and high surge current capability support robust circuit protection.
Applications
- AC/DC bridge full wave rectification for switching power supplies
- Home appliances
- Office equipment
- Industrial automation applications
Procurement Notes
Verify the specific part number against official Vishay documentation to confirm availability status, as components in this series may be subject to discontinuation notices or regional distribution restrictions. Ensure compliance with RoHS requirements indicated by the E4 suffix before finalizing procurement orders.
Selection Notes
Select the GBPC102 variant specifically when the circuit requires a 200 V maximum repetitive peak reverse voltage rating. Confirm that the thermal management design accommodates the specified thermal resistance values and derating curves for ambient temperatures exceeding 25 °C to maintain the 3.0 A current capacity.
Part Context
This component belongs to the GBPC1 series of single-phase bridge rectifiers, which includes variants ranging from 50 V to 1000 V reverse voltage ratings. All members share the same GBPC1 package dimensions and general electrical characteristics, differing primarily in their voltage blocking capabilities.
Replacement Considerations
Cross-reference other manufacturers' GBPC1-style bridge rectifiers offering a 200 V rating and 3 A current capacity. Verify that physical dimensions, terminal configurations, and thermal performance match the original design requirements.
FAQ
What is the polarity marking on the GBPC102 case?
The positive lead is identified by a beveled corner on the case, while AC inputs are marked accordingly.
What is the recommended mounting torque for the terminals?
The recommended mounting torque is 5.7 cm-kg (5 inches-lbs), with a maximum limit of 10 cm-kg (8.8 inches-lbs).
How does the average forward current change with ambient temperature?
The output current must be derated based on the ambient temperature curve provided in the datasheet; the rated 3.0 A applies at a case temperature of 60 °C.
