Product Detailed Parameters
- Description：BRIDGE RECT 1P 100V 15A GBPC-M
- Series：GBPC
- Mfr：Taiwan Semiconductor Corporation
- Package：Tray
- Diode Type：Single Phase
- Technology：Standard
- Voltage - Peak Reverse (Max)：100 V
- Current - Average Rectified (Io)：15 A
- Voltage - Forward (Vf) (Max) @ If：1.1 V @ 7.5 A
- Current - Reverse Leakage @ Vr：5 µA @ 100 V
- Operating Temperature：-55°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：4-Square, GBPC-M
- Supplier Device Package：GBPC-M
- Grade：-
- Qualification：-
Download product information
Overview

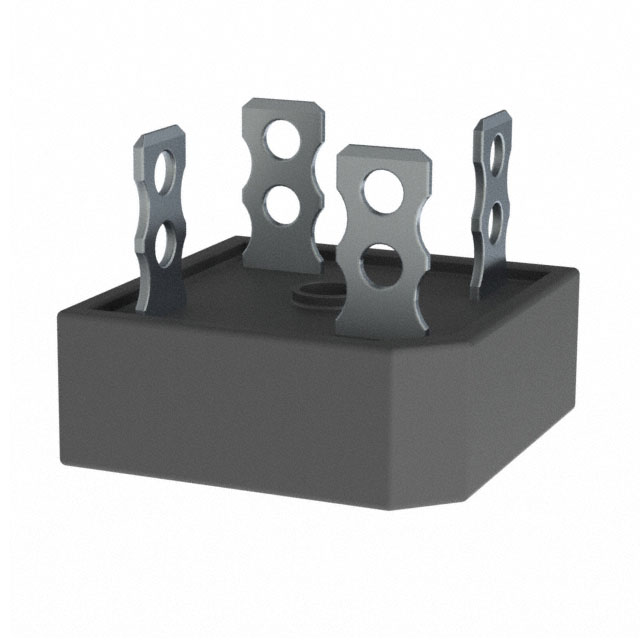

The GBPC1501M is a single-phase standard bridge rectifier from the Taiwan Semiconductor GBPC15 series. It features a 100V repetitive peak reverse voltage (VRRM) and supports an average forward current (IF) of 15A. The device utilizes a GBPC-M package with screw mounting terminals. Electrical characteristics include a maximum forward voltage (VF) of 1.1V at 7.5A, a typical reverse leakage current (IR) of 5µA at rated voltage, and a peak non-repetitive forward surge current (IFSM) of 300A. The junction temperature range spans from -55°C to +150°C.
Feature Summary
- Glass passivated chip junction for enhanced reliability
- Integrally molded heatsink providing low thermal resistance
- High surge current capability for robust operation
Applications
- Switching mode power supply (SMPS)
- AC to DC converter circuits
Procurement Notes
Verify the specific suffix 'M' corresponds to the GBPC-M terminal configuration before ordering. Confirm that the 100V rating aligns with the circuit requirements. Ensure compliance with RoHS standards if required by the project specifications. Cross-reference the datasheet version M2211 for accurate electrical limits.
Selection Notes
Select this component when a 15A continuous current rating and 100V blocking voltage are required in a compact form factor. The GBPC-M package offers screw mounting for secure installation on heat sinks. Consider the 1.5°C/W thermal resistance for effective heat dissipation design in high-temperature environments.
Part Context
This part belongs to the GBPC15 series, which covers 15A devices with voltage ratings from 50V to 1000V. The '01' designation specifically indicates the 100V variant within this family. The 'M' suffix distinguishes it from standard GBPC or wire-structure GBPC-W packages.
Replacement Considerations
Direct substitutes must match the 15A current rating, 100V reverse voltage, and GBPC-M package type. Verify thermal resistance and forward voltage drop compatibility to ensure equivalent performance in the target application.
