Product Detailed Parameters
- Description：BRIDGE RECT 1PHASE 200V 15A GBPC
- Series：-
- Mfr：Taiwan Semiconductor Corporation
- Package：Tray
- Diode Type：Single Phase
- Technology：Standard
- Voltage - Peak Reverse (Max)：200 V
- Current - Average Rectified (Io)：15 A
- Voltage - Forward (Vf) (Max) @ If：1.1 V @ 7.5 A
- Current - Reverse Leakage @ Vr：5 µA @ 200 V
- Operating Temperature：-55°C ~ 150°C (TJ)
- Mounting Type：QC Terminal
- Package / Case：4-Square, GBPC
- Supplier Device Package：GBPC
- Grade：-
- Qualification：-
Download product information
Overview

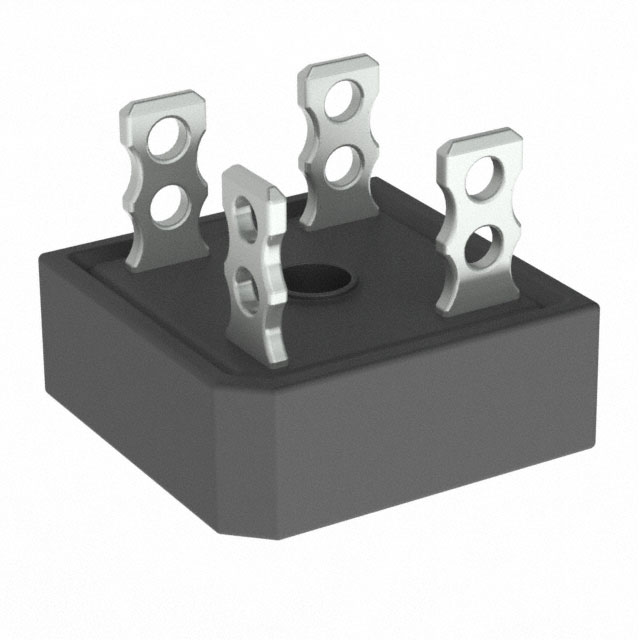

The GBPC1502 T0G is a single-phase bridge rectifier from the Taiwan Semiconductor GBPC15 series. It features a 200 V repetitive peak reverse voltage (VRRM) and supports a maximum average forward rectified current (IF) of 15 A. The device handles a peak forward surge current (IFSM) of 300 A under an 8.3 ms single half-sine-wave condition. Electrical characteristics include a typical maximum instantaneous forward voltage drop (VF) of 1.1 V at 7.5 A, and a reverse leakage current (IR) of 5 µA at rated VR. The component operates within a junction temperature range of -55 °C to +150 °C and utilizes a GBPC package with an integrally molded heatsink.
Feature Summary
- Glass passivated chip junction construction
- Integrally molded heatsink for low thermal resistance
- High surge current capability
Applications
- Switching mode power supply (SMPS)
- AC to DC converter
Procurement Notes
Verify the specific suffix against official documentation to confirm terminal configuration and packaging details. Confirm RoHS compliance status and UL recognition file number E-326243 during sourcing. Ensure the ordering code matches the required voltage and current ratings for the intended application environment.
Selection Notes
Select this component based on the 15 A current rating and 200 V blocking voltage requirements. Consider the 1.5 °C/W junction-to-case thermal resistance for heat dissipation planning. Verify that the operating ambient temperature allows for proper derating according to the manufacturer's forward current curves.
Part Context
This part belongs to the GBPC15, 25, and 35 series of standard bridge rectifiers manufactured by Taiwan Semiconductor. The series covers various current ratings up to 35 A and voltage ratings from 50 V to 1000 V. The GBPC1502 specifically addresses applications requiring 15 A continuous current with a 200 V reverse voltage capability in a robust plastic encapsulated package.
Replacement Considerations
Cross-reference with other manufacturers offering 15 A, 200 V bridge rectifiers in the GBPC package. Verify pinout compatibility and thermal resistance specifications before substitution.
